Kia Forte: Light bulbs / Trunk room lamp replacement
1. Open the trunk lid.

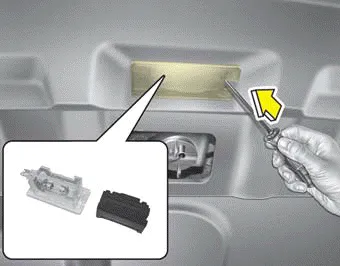

2. Remove the lamp assembly by using a flat-blade screwdriver.
3. Remove the cover from the lamp assembly.
4. Remove the bulb by pulling it straight out.
5. Install a new bulb in the socket.
6. Install the cover to the lamp assembly.
7. Install the lamp assembly to the body of the vehicle.
CAUTION
Be careful not to dirty or damage the lens, lens tab, and plastic housings.
1. Using a flat-blade screwdriver, gently pry the lamp assembly from interior. 2. Remove the bulb by pulling it straight out. 3. Install a new bulb in the socket.
