Kia Forte: Fuses / Driver’s side fuse panel
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicle.

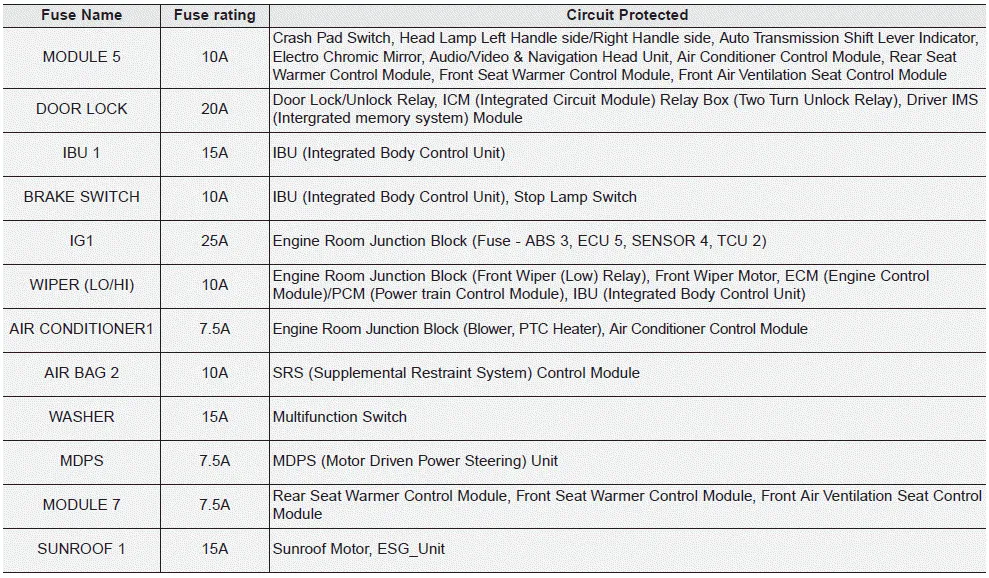

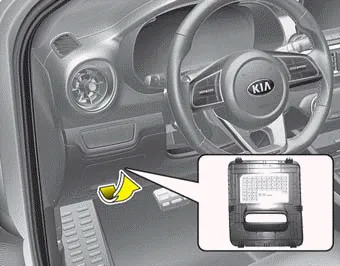

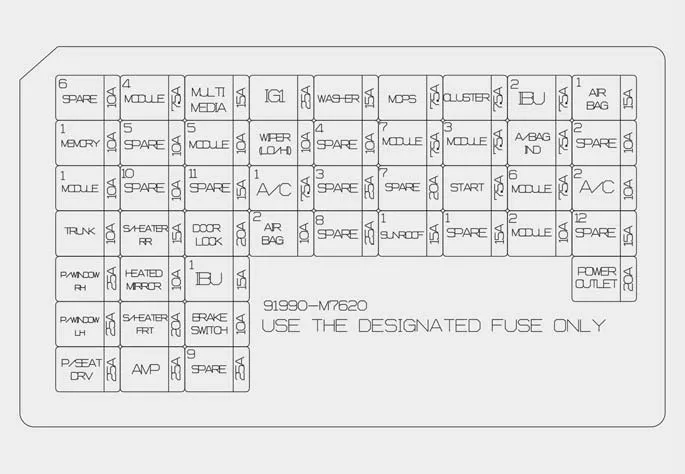

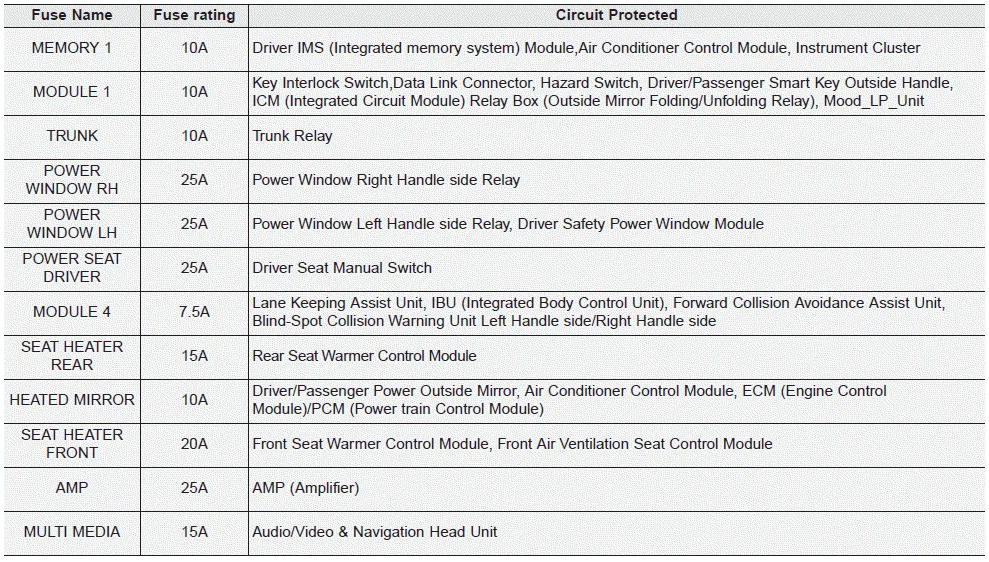

Instrument panel (Driver’s side fuse panel)
1. Turn the ignition switch and all other switches off. 2. Remove the fuse panel cover by pressing the tab and pulling the cover up. 3. Check the removed fuse; replace it if it is blown.
Engine room compartment fuse panel Engine room compartment fuse panel Relay Engine compartment fuse panel (Battery terminal cover) ✽ NOTICE Not all fuse panel descriptions in this manual may be applicable to your vehicle.
