■ Type A

■ Type B

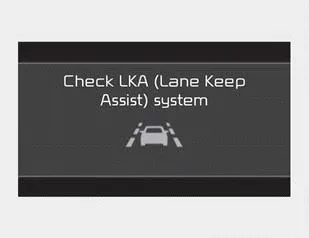

• If there is a problem with the system, a message will appear. If the problem continues, the LKA fail indicator will illuminate.
LKA fail indicator
The LKA fail indicator (yellow) will illuminate with an audible warning if the LKA is not working properly. If this occurs have the system checked by an authorized Kia dealer.
When there is a problem with the system, do one of the following:
If the problem is not solved, take your vehicle to an authorized Kia dealer and have the system checked.
If the vehicle leaves a lane, the lane marker you cross will blink on the LCD display. If the vehicle moves out of its lane because the steering torque for assistance is insufficient, the line indicator will blink.
The driver can change LKA to Lane Departure Warning (LDW) system or change the LKA mode between Standard LKA and Active LKA from the User Settings Mode on the LCD display.
- For 15/16 inch tire System voltage: DC 12 V Working voltage: DC 10 - 15 V Amperage rating: MAX. 10 ± 1 A (at DC 12V operation) Suitable for use at temperatures: -30 ~ +70°C (-22 ~ +158°F) Max. working pressure: 6 bar (87 psi) Size Compressor: 161 x 150 x 55.
Dimensions Engine Bulb wattage Tires and wheels CAUTION When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make them work irregularly. ✽ NOTICE It is permissible to add 21 kPa (3 psi) to the standard tire pressure specificatio
