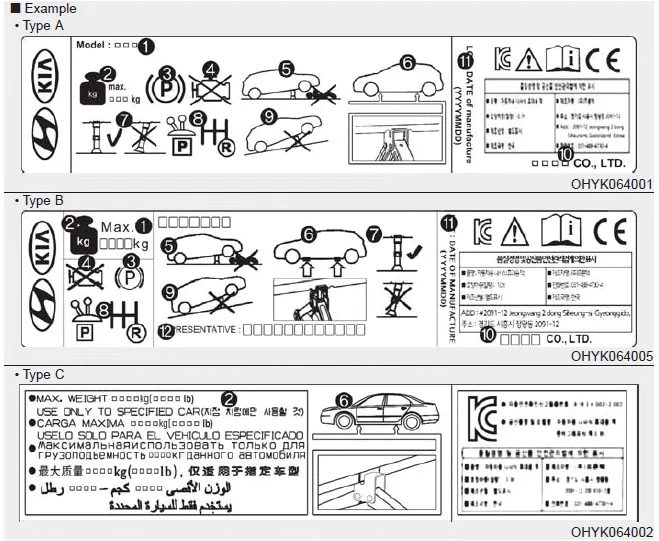

Kia Forte: If you have a flat tire / Jack label
1. Model Name
2. Maximum allowable load
3. When using the jack, set your
parking brake.
4. When using the jack, stop the
engine.
5. Do not get under a vehicle that is
supported by a jack.
6. The designated locations under
the frame
7. When supporting the vehicle, the
base plate of the jack must be vertical
under the lifting point.
8. Move the shift lever to the P position
on vehicles with intelligent
variable transmission.
9. The jack should be used on firm
level ground.
10. Jack manufacturer
11. Production date
12. Representative company and
address
1. Park on a level surface and apply the parking brake firmly. 2. Place the transmission shift lever in P (Park) with Dual clutch transmission/ Intelligent variable transmission and R (Reverse) with manual transmission.
Please read the instructions before using the Tire Mobility Kit. (1) Compressor (2) Sealant bottle The Tire Mobility Kit is a temporary fix to the tire and the tire should be inspected by an authorized Kia dealer as soon as possible.
Other information:
Kia Forte 2019-2024 (BD) Owner's Manual: Notes on the safe use of the Tire Mobility Kit
Park your car at the side of the road so that you can work with the Tire Mobility Kit away from moving traffic. To be sure your vehicle will not move, even when you're on fairly level ground, always set your parking brake. Only use the Tire Mobility Kit for sealing/inflation passenger car tires.
Kia Forte 2019-2024 (BD) Owner's Manual: Stop and tail lamp/side marker (Bulb type) bulb replacement (Rear combination lamp Type A)
1. Open the trunk lid. 2. Open the service cover. 3. Remove the nuts from the vehicle. 4. Remove the rear combination lamp assembly from the body of the vehicle. 5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
