■ Type A

■ Type B

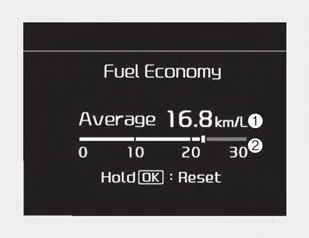

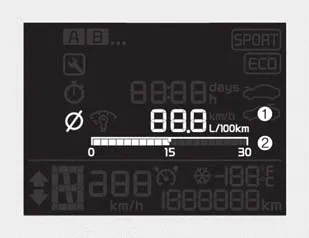

Average Fuel Economy (1)
✽ NOTICE
Fuel economy may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
Manual reset
To clear the average fuel economy manually, press the RESET or OK button on the steering wheel for more than 1 second when the average fuel economy is displayed.
Automatic reset (For type B, C cluster)
To make the average fuel economy be reset automatically whenever refueling, select the “Fuel economy auto reset” mode in the User Setting menu of the LCD Windows (Refer to “LCD Windows”).
✽ NOTICE
The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 50 meters (0.03 miles) since the ignition switch or Engine Start/Stop button is turned to ON.
Instant Fuel Economy (2)
• This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 10km/h (6.2 MPH).
- Fuel economy range: 0.0 ~ 30 km/L , L/100km or 0.0 ~ 50.0 MPG
CAUTION
Avoid driving with an extremely low fuel level (with the fuel level below “E” or with the fuel warning light on). Running out of fuel could cause the engine to misfire, damaging the catalytic converter (if equipped).
Tripmeter (1) The tripmeter is the total driving distance since the last tripmeter reset. - Distance range : 0 ~ 1599999 km or 0 ~ 999999 mi.
Displays accumulated information starting from a mileage/fuel efficiency/ time default point. Accumulated information is calculated after the vehicle has run for more than 300 meters (0.
