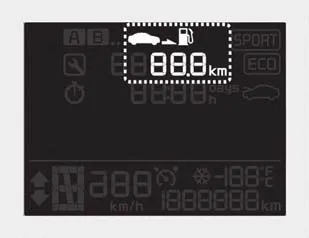

■ Type A

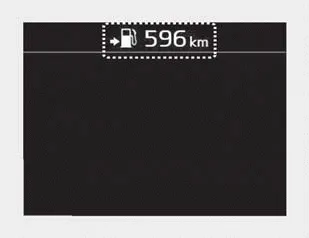

■ Type B
• The distance to empty is the estimated distance the vehicle can be driven with the remaining fuel.
- Distance range: 1 ~ 9,9999 km or 1 ~ 9,999 mi.
• If the estimated distance is below 1 km (1 mi.), the trip computer will display “---” as distance to empty.
✽ NOTICE
The trip computer is a microcomputer- controlled driver information system that displays information related to driving. ✽ NOTICE Some driving information stored in the trip computer (for example Average Fuel Economy) resets if the battery is disconnected.
- For type A cluster To change the trip mode, press the TRIP button. - For type B, C cluster To change the trip mode, scroll the MOVE scroll switch ( / ) or press the TRIP button in the trip computer mode.
Park your car at the side of the road so that you can work with the Tire Mobility Kit away from moving traffic. To be sure your vehicle will not move, even when you're on fairly level ground, always set your parking brake. Only use the Tire Mobility Kit for sealing/inflation passenger car tires.
1. Remove the lamp assembly by using a flat-blade screwdriver. 2. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly. 3. Remove the bulb from bulb-socket by pulling it out.
