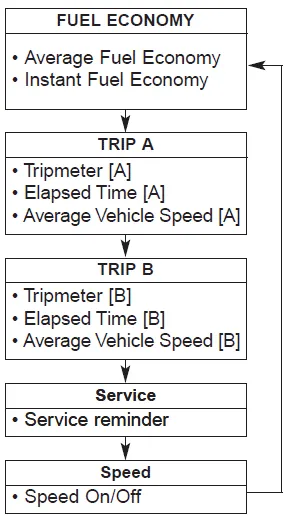

- For type A cluster

To change the trip mode, press the TRIP button.

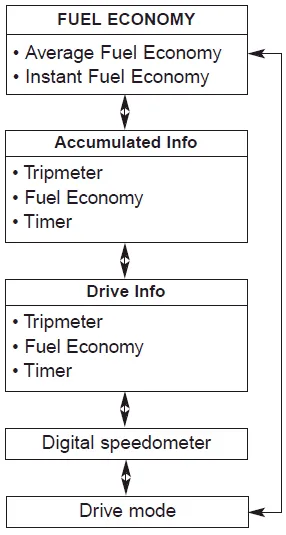

- For type B, C cluster

To change the trip mode, scroll the MOVE scroll switch ( / ) or press the TRIP button in the trip computer mode.
■ Type A ■ Type B • The distance to empty is the estimated distance the vehicle can be driven with the remaining fuel. - Distance range: 1 ~ 9,9999 km or 1 ~ 9,999 mi.
Tripmeter (1) The tripmeter is the total driving distance since the last tripmeter reset. - Distance range : 0 ~ 1599999 km or 0 ~ 999999 mi.
Please read the instructions before using the Tire Mobility Kit. (1) Compressor (2) Sealant bottle The Tire Mobility Kit is a temporary fix to the tire and the tire should be inspected by an authorized Kia dealer as soon as possible. CAUTION - One sealant for one tire When two or more tires are flat, do not use the Tire Mobilit
■ Nu 2.0L MPI Engine (Gasoline) ■ Gamma 1.6L T-GDI Engine (Gasoline) 1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake / clutch fluid reservoir 4. Air cleaner 5. Fuse box 6. Negative battery terminal 7. Positive battery terminal 8.
