Kia Forte: Maintenance / Engine compartment

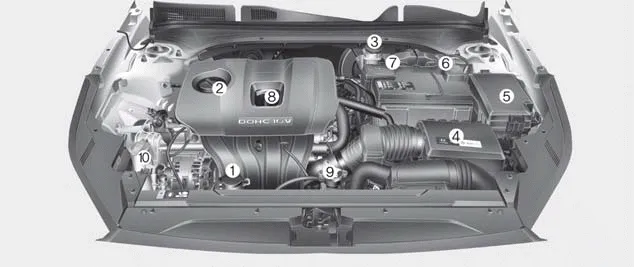

■ Nu 2.0L MPI Engine (Gasoline)

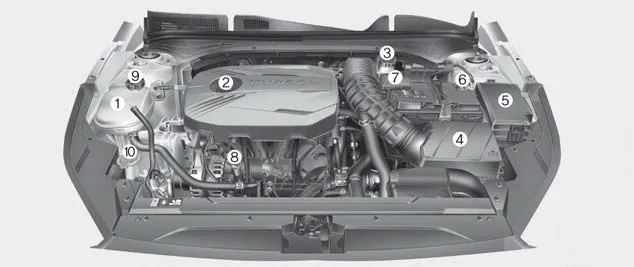

■ Gamma 1.6L T-GDI Engine (Gasoline)

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake / clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10.Windshield washer fluid reservoir

    You should exercise the utmost care to prevent damage to your vehicle and injury to yourself whenever performing any maintenance or inspection procedures.
