Kia Forte: Body (Interior and Exterior) / Interior Trim

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Interior Trim

Components and components location

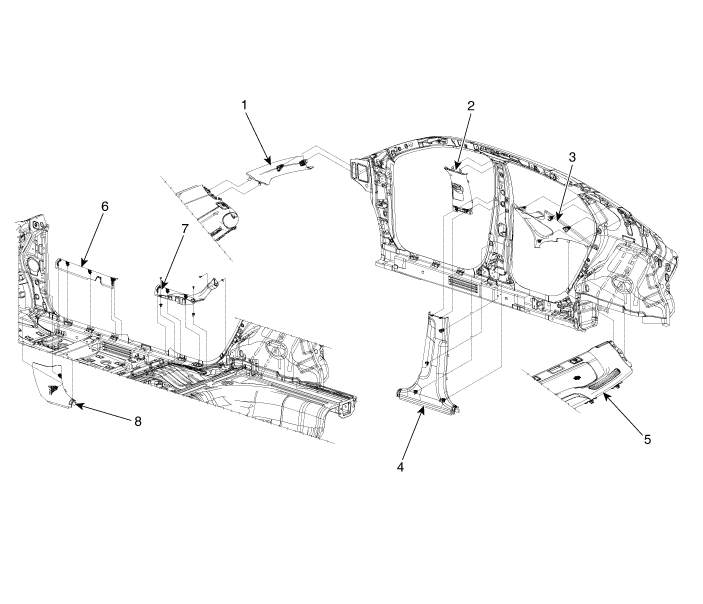

Components

1. Front pillar trim
2. Center pillar upper trim
3. Rear pillar trim
4. Center pillar lower trim

5. Rear package tray trim
6. Front door scuff trim
7. Rear door scuff trim
8. Cowl side trim
