Kia Forte: Interior Trim / Door Scuff Trim

Kia Forte 2019-2025 (BD) Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim

Components and components location

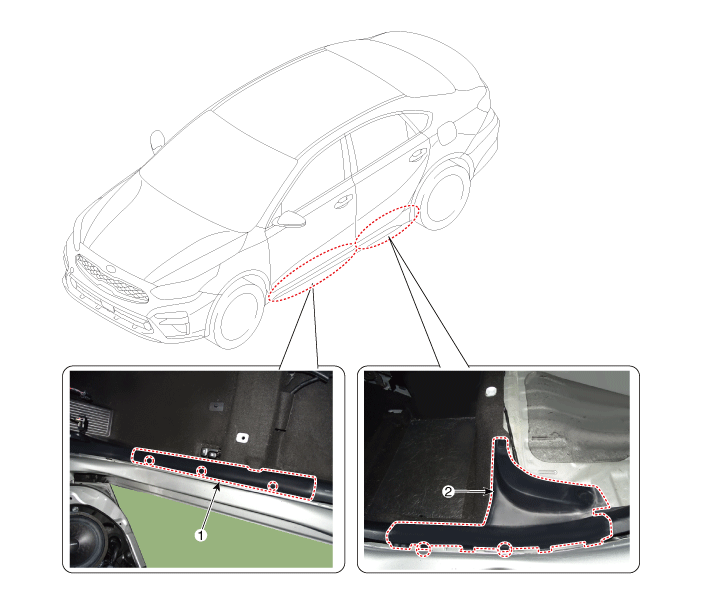

Component Location

1. Front door scuff trim

2. Rear door scuff trim

Repair procedures

Replacement

[Front door scuff trim]

Put on gloves to prevent hand injuries.

•	When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Take care not to bend or scratch the trim and panels.

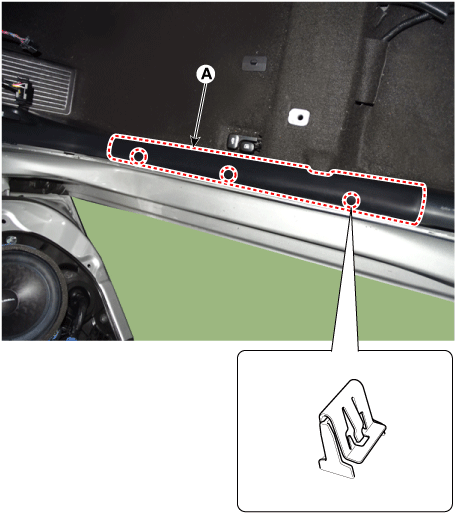

1.	Using a screwdriver or remover, remove the front door scuff trim (A).

To install, reverse the removal procedure.

Replace any damaged clips (or pin - type retainers).

[Rear door scuff trim]

Put on gloves to prevent hand injuries.

•	When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

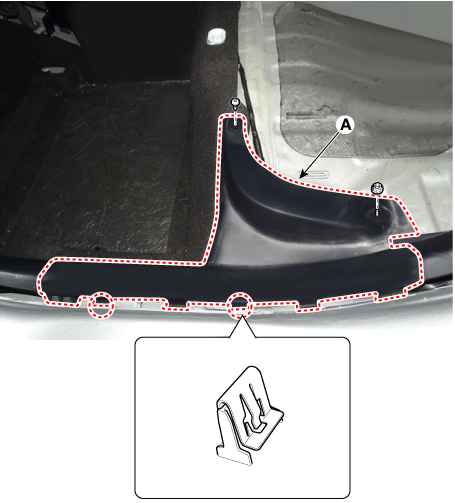

2.	Loosen the mounting screws and remove the rear door scuff trim (A).

To install, reverse the removal procedure.

Replace any damaged clips (or pin - type retainers).
