Kia Forte: Integrated Memory Seat (IMS) System / Integrated Memory Seat (IMS) Switch

Kia Forte 2019-2024 (BD) Service Manual / Body Electrical System / Integrated Memory Seat (IMS) System / Integrated Memory Seat (IMS) Switch

Components and components location

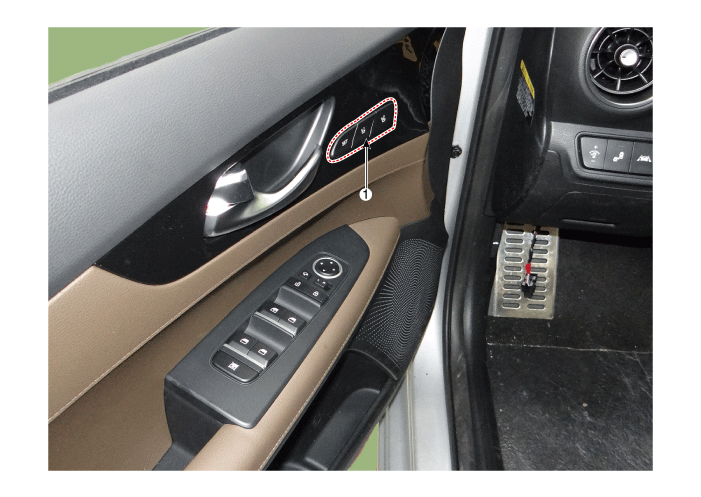

Components Location

1. Integrated memory system control switch assembly

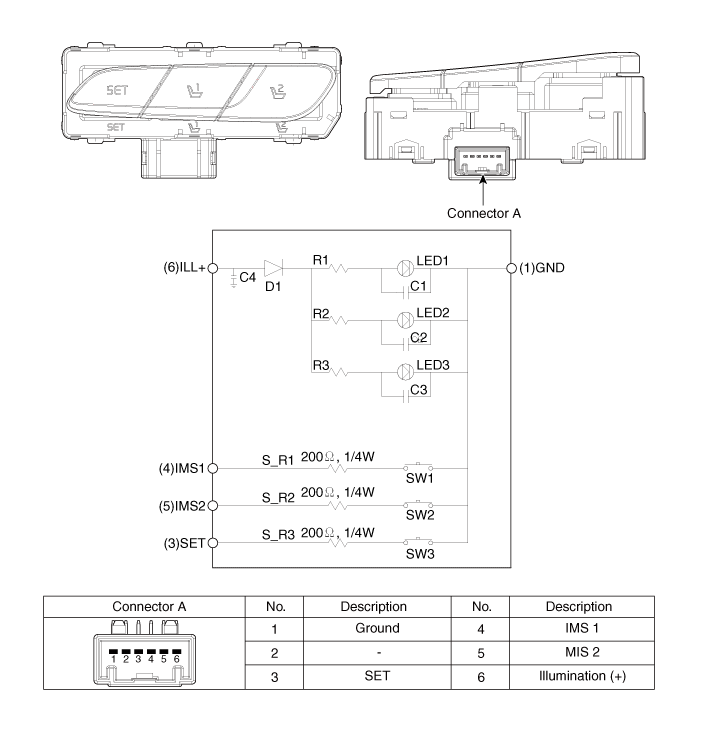

Schematic diagrams

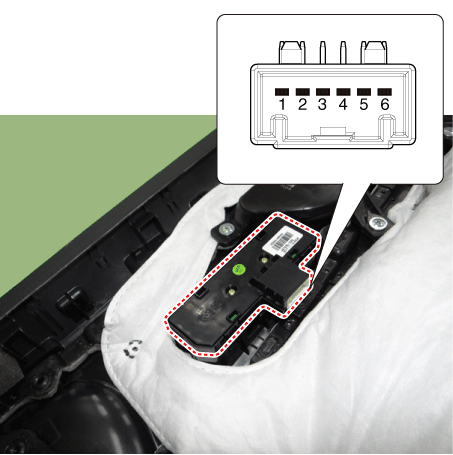

Connector and Terminal function

Repair procedures
Removal
1.

Disconnect the negative battery terminal.

2.

Remove the driver door trim.

(Refer to Body - "Front Door Trim")

3.

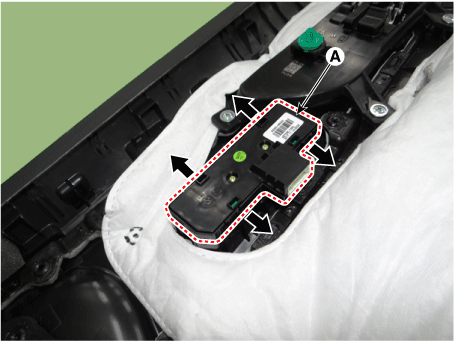

Remove the IMS switch (A).

Installation
1.

Install in the reverse order of removal.

Inspection
1.

Remove the front door trim.

(Refer to Body - "Front Door Trim")

2.

When each switch is pressed, check the electricity flow between integrated memory seat switch connector and grounding, and if the electricity does not match the specification, replace the switch.

Switch
Connector Terminal
Resistance (Ω)
SET
1-3
200
Memory 1
1-4
Memory 2
1-5

Integrated Memory Seat (IMS) Unit
