Description and operation
Description

The heated steering wheel system improves the thermal comfort of the driver by heating the steering wheel when manually selected.

Specifications

Item
Specification
Voltage
13.5 V
Heated pad resistance
1.7 Ω ± 10%
NTC resistance
10.0 kΩ ± 5% [25 °C (77 °F)]

Schematic diagrams

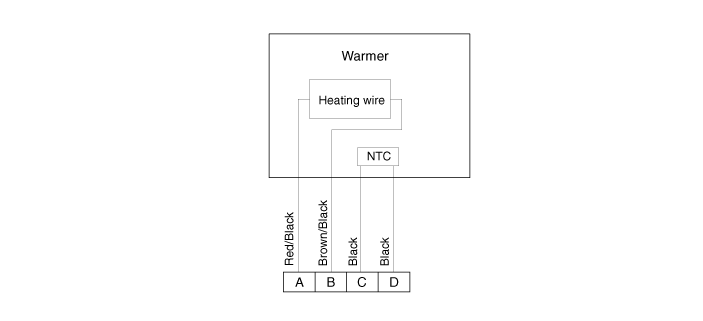

System Circuit Diagram

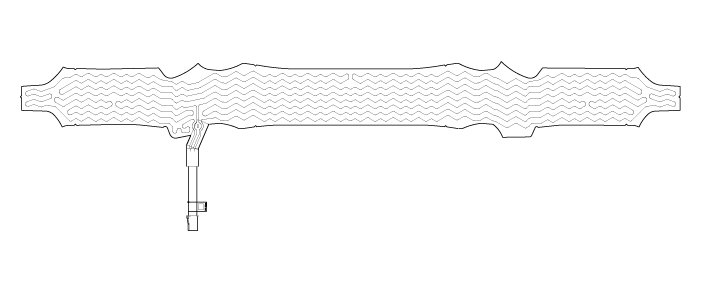

Heated steering wheel Pad

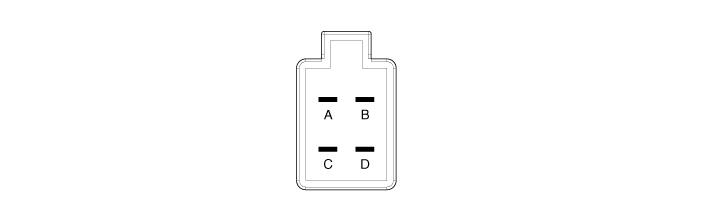

Harness Connector

Terminal Function

Housing
Pin
Function
Wire color
Pad
A
HEATER
Red / Black
B
Ground
Brown / Black
C
NTC +
Black
D
NTC -
Black

Repair procedures
Inspection
1.

Measure a resistance of NTC and Heated pad.

NTC resistance (Black / Black) : 10.0 kΩ ± 5 % [at 25 °C (77 °F)]

Heated pad resistance (Red, Black / Brown, Black) : 1.7 Ω ± 10 %

2.

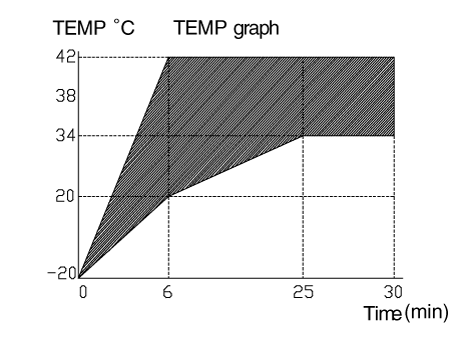

Measure a temperature.

The temperature of wheel surface grip must rise from -20 °C (-4 °F) to 20 °C (68 °F) within 6 minute

The temperature of wheel surface grip must keep 38 ± 4 °C (100.4 ± 39.2 °F) after 25 minute

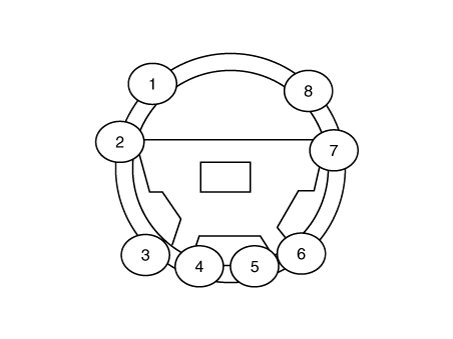

At that time switch on, all measure point (1 - 8)
