Kia Forte: Seat belt restraint system / Front passenger seat belt warning
![](images/front_passenger_seat_belt_warning-21/1/forte_062.png)

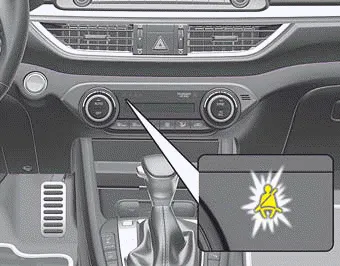

When the ignition switch is ON or the
engine starts with the front passenger
seat belt unfastened, the warning
light will stay on until the belt is fastened.
When the ignition switch is ON
or the engine starts with the front
passenger seat belt fastened, the
warning light will stay for about 6
seconds.
If the passenger seat belt is unfastened
during driving, the warning
light will illuminate if the speed is
under 20 km/h (12 mph). When the
speed is 20 km/h (12 mph) and
faster, the warning light will blink and
the warning chime will sound for
approximately 100 seconds.
✽ NOTICE
- Even if the front passenger seat is
not occupied, the seat belt warning
light will illuminate for 6 seconds.
- The front passenger's seat belt
warning may operate when luggage
is placed on the front passenger
seat.
If a driver turns the ignition switch
ON or the engine starts with the seat
belt unfastened, the seat belt warning
light will stay on until the driver
fastens the seat belt and the warning
...
To fasten your seat belt:
To fasten your seat belt, pull it out of
the retractor and insert the metal tab
(1) into the buckle (2). There will be
an audible "click" when the tab locks
into t ...
