Kia Forte: Engine And Transmission Assembly / Engine Room Under Cover

Kia Forte 2019-2025 (BD) Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Room Under Cover

Repair procedures

Removal and Installation

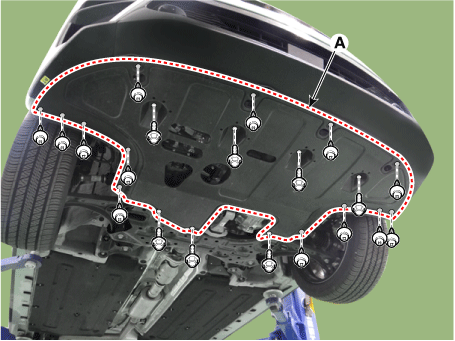

Remove the engine room under cover (A).

Tightening torque :

3.9 - 5.9 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft)

2.	Install in the reverse order of removal.
