Kia Forte: Engine And Transmission Assembly / Engine Cover

Kia Forte 2019-2023 (BD) Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Cover

Repair procedures
Removal and Installation
1.

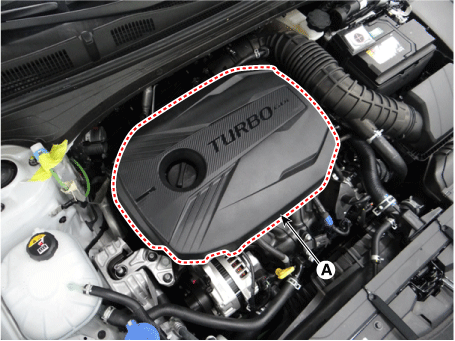

Remove the engine cover (A).

2.

Install in the reverse order of removal.
