Kia Forte: Fuses / Engine compartment fuse panel

Kia Forte 2019-2022 (BD) Owners Manual / Maintenance / Fuses / Engine compartment fuse panel

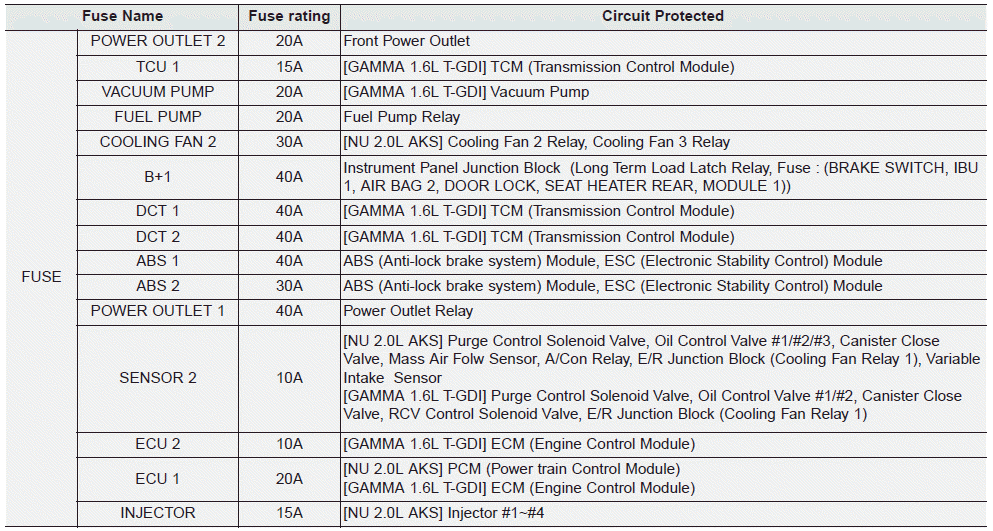

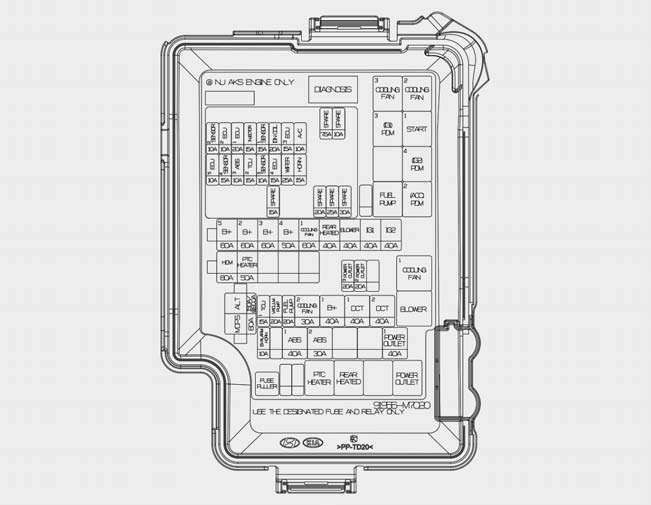

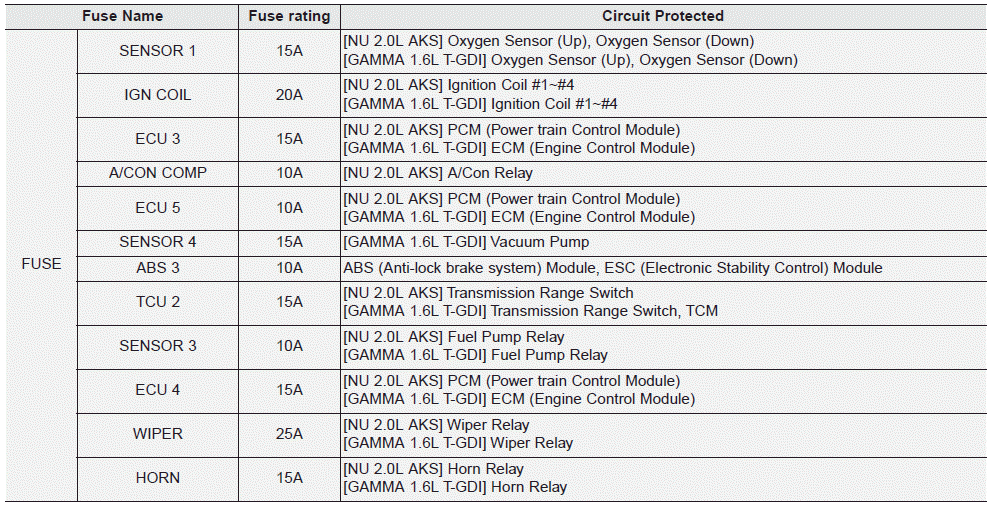

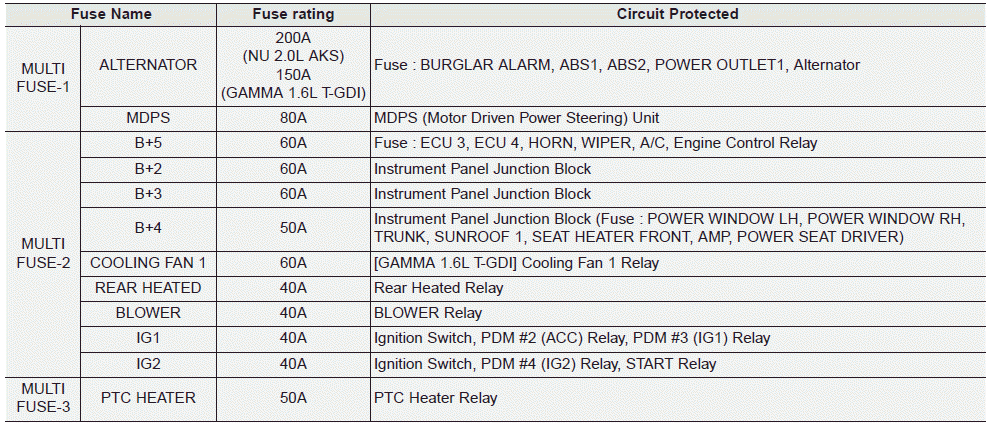

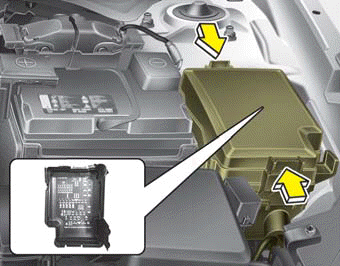

Engine room compartment fuse panel

Engine room compartment fuse panel

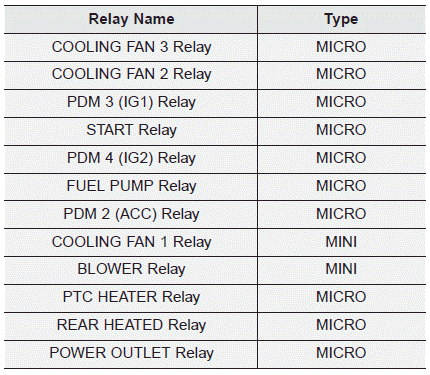

Relay

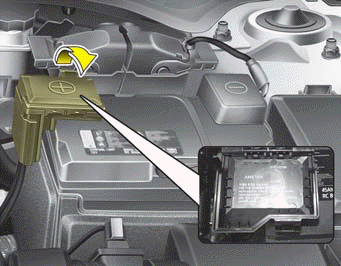

Engine compartment fuse panel (Battery terminal cover)

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
