Kia Forte: Sunroof / Sunshade, Resetting the sunroof

Kia Forte 2019-2020 (BD) Owners Manual / Features of your vehicle / Sunroof / Sunshade, Resetting the sunroof

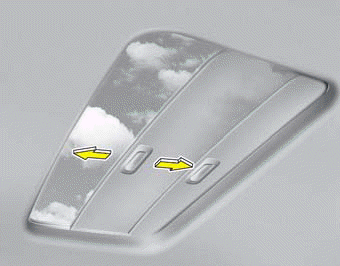

Sunshade

When opening the sunroof, the sunshade will also open. Once the sunroof is closed, the sunshade can be manually closed.

Resetting the sunroof

Whenever the vehicle battery is disconnected or discharged, or related fuse is blown, you must reset your sunroof system as follows:

1.The ignition switch must be in the ON position.

2.Close the sunroof completely.

3.Release the control lever.

4.Push the control lever forward until the sunroof tilts and slightly moves up and down. Then, release lever.

5.Push the control lever forward until the sunroof is operated as follows:

TILT DOWN → SLIDE OPEN → SLIDE CLOSE

Then, release the control lever.

✽ NOTICE

Do not release the lever until the operation is completed. If you release the lever during operation, try again from step 2.

❈ For more detailed information, contact an authorized Kia dealer.

✽ NOTICE

If the sunroof is not reset when the vehicle battery is disconnected or discharged, or related fuse is blown, the sunroof may operate improperly.

Tilting the sunroof
To tilt open the sunroof, push the sunroof control lever upward until the sunroof moves to the desired position. To close the sunroof, push the sunroof lever forward until the sunroof moves ...
