Kia Forte: Light bulbs / Headlamp (High beam) bulb replacement (Headlamp Type A,B)

1. Open the hood.

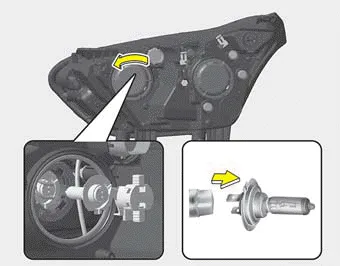

2. Remove the headlamp bulb cover by turning it counterclockwise.

3. Remove the bulb-socket from the headlamp assembly by turning the bulb-socket counterclockwise until the tabs on the bulb-socket align with the slots on the headlamp assembly.

4. Remove the bulb from bulb-socket by pulling it out.

5. Insert a new bulb by inserting it into the bulb-socket.

6. Install the bulb-socket in the headlamp assembly by aligning the tabs on the bulb-socket with the slots in the headlamp assembly. Push the bulb-socket into the headlamp assembly and turn the bulb-socket clockwise.

7. Install the headlamp bulb cover by turning it clockwise.

Headlamp bulb

WARNING - Halogen bulbs

• Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken.

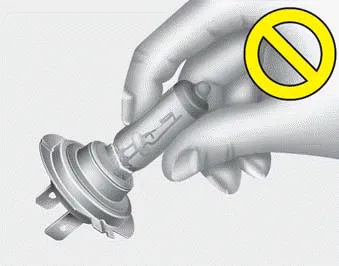

• Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids. Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit. A bulb should be operated only when installed in a headlight.
• If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.
• Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.
