Kia Forte: Smart Cruise Control speed / Smart cruise control will be temporarily
canceled when
Cancelled manually

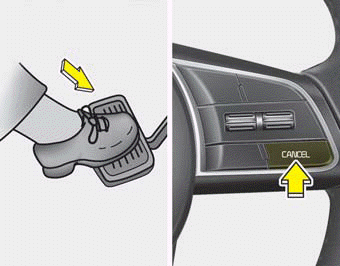

The smart cruise control is temporarily
canceled when the brake pedal is
depressed or the CANCEL button is
pressed. Depress the brake pedal
and press the CANCEL button at the
same time when the vehicle is at a
standstill. The speed and vehicle to
vehicle distance indicator on the
cluster will disappear and the
CRUISE indicator will be illuminated
continuously.
Cancelled automatically
- The driver's door is opened.
- The shift lever is shifted to N
(Neutral), R (Reverse) or P (Paking).
- The EPB (electronic parking brake)
is applied.
- The vehicle speed is over 180
km/h (110 mph)
- The ESC, ABS or TCS is operating.
- The ESC is turned off.
- The sensor or the cover is dirty or
blocked with foreign matter.
- When the vehicle is stopped for
over 5 minutes.
- The driver starts driving by pushing
the toggle switch up (RES+)/down
(SET-) or depressing the accelerator
pedal, after stopping the vehicle
with a vehicle stopped far away in
front.
- Engine rpm is in the red zone.
- The accelerator pedal is continuously
depressed for a long time.
- The engine speed is in a dangerous
range.
- The SCC system has malfunctioned.
- When the braking control is operated
for Forward Collision-Avoidance
Assist(FCA).
- The vehicle is stopped for more
than 5 minutes.
- The driver starts driving by pushing
the toggle switch up (RES+)/down
(SET-) or depressing the accelerator
pedal, after the vehicle is
stopped by the Smart Cruise
Control system with no other vehicle
ahead.
- The vehicle stops and goes repeatedly
for a long period of time.
- When the parking brake is locked.
- Engine has some problems.
Each of these actions will cancel the
smart cruise control operation. (the
set speed and vehicle to vehicle distance
on the LCD display will go off.)
If the smart cruise control is cancelled
automatically, the smart cruise
control will not resume even though
the RES+ or SET-lever is moved.
✽ NOTICE
If the smart cruise control is cancelled
by other than the reasons mentioned,
take your vehicle to an authorized
Kia dealer and have the system
checked.
✽ NOTICE

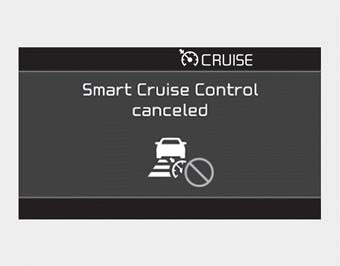

If the system is automatically cancelled,
the warning chime will sound
and a message will appear for a few
seconds.
You must adjust the vehicle speed by
depressing the accelerator or brake
pedal according to the road and
driving conditions ahead.
Always check the road conditions.
Do not rely on the warning chime.
Follow either of these procedures:
Move the lever down (to SET-), and
hold it. Your vehicle set speed will
decrease by 10 km/h (5 mph).
Release the lever at the speed you
want.
Mov ...
Reset
If any method other than the “RES+”
or “SET-“ lever was used to cancel
cruising speed and the system is still
activated, the cruising speed will
automatically resume when you ...
