Kia Forte: Towing / Removable towing hook

■ Front
1. Open the tailgate, and remove the
towing hook from the tool case.

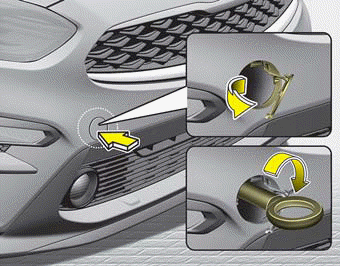

2. Remove the hole cover pressing
the lower (front) part of the cover
on the bumper.
3. Install the towing hook by turning it
clockwise into the hole until it is
fully secured.
4. Remove the towing hook and
install the cover after use.
Towing service
If emergency towing is necessary,
we recommend having it done by an
authorized Kia dealer or a commercial
tow-truck service. Proper lifting
and towing procedures are necessar ...
■ Front
■ Rear
If towing is necessary, we recommend
you to have it done by an
authorized Kia dealer or a commercial
tow truck service.
If towing service is not available in an
emerg ...
