Components and components location

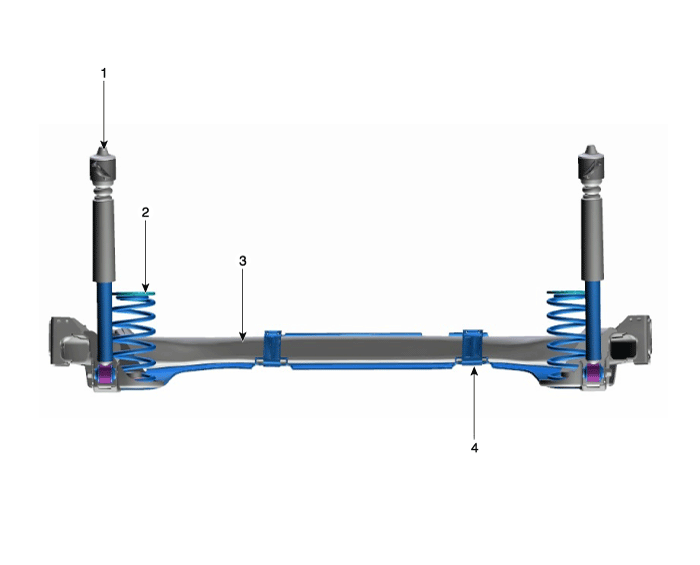

Components

1. Rear shock absorber
2. Coil spring
3. Torsion beam axle
4. Torsion beam axle cover

Front Alignment
Repair procedures Front wheel alignment 1. When using a commercially available computerized wheel alignment equipment to inspect the front wheel alignment, always posit ...

Rear Shock Absorber
Components and components location Components 1. Shock absorber dust cap 2. Lock nut 3. Insulator assembly 4. Bumper rubber 5. Dust cover 6. Shock ...
