Kia Forte: Rear Door / Rear Door Trim

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Trim

Components and components location

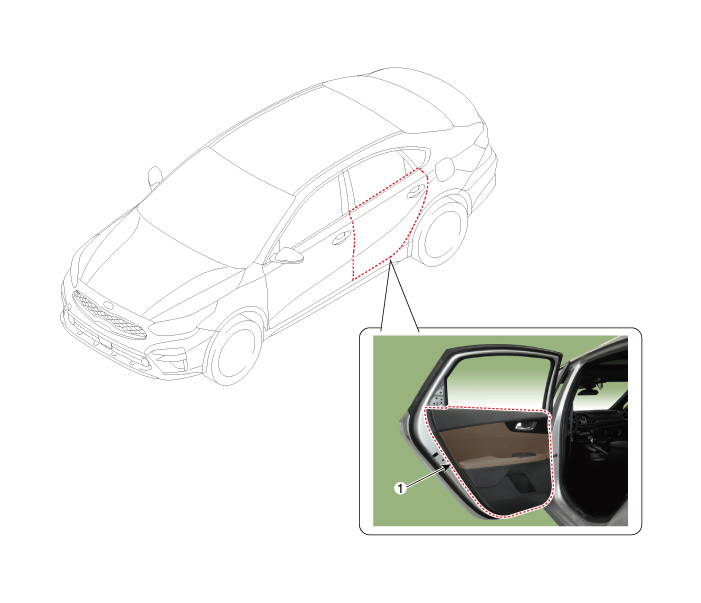

Component Location

1. Rear door trim


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Be careful not to scratch the door trim and other parts.

1.

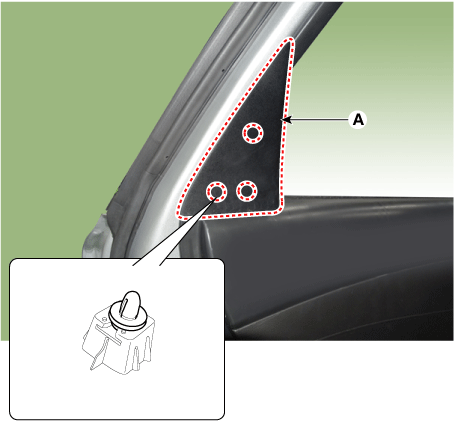

Using a screwdriver or remover, remove the rear door delta inner cover (A).

2.

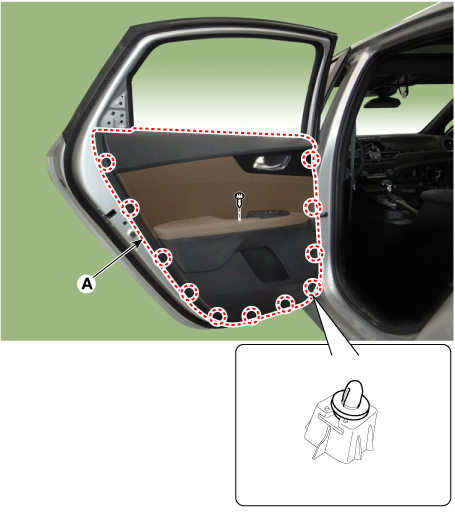

After loosening the mounting screws, remove the rear door trim (A).

3.

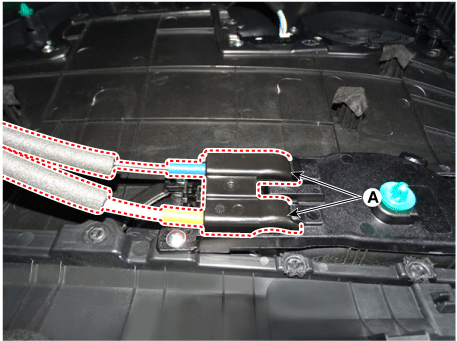

Remove the rear door inside handle cage (A).

4.

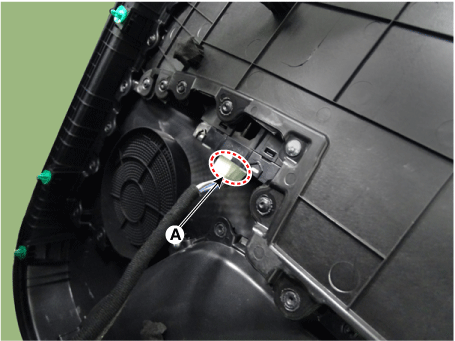

Disconnect the power window switch connector (A).

5.

To install, reverse the removal procedure.



Make sure the connector is connected properly.

Make sure the door locks / unlocks and opens / closes properly.

Replace any damaged clips (or pin - type retainers).

Make sure the glass moves properly.

Rear Door
Components and components location Components 1. Rear door trim 2. Rear door lower channel 3. Rear door hinge 4. Rear door delta inner cover 5. Rear door be ...

Rear Door Inside Handle
Repair procedures Replacement 1. Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim") 2. After loosening the mounting sc ...
