Kia Forte: Seat Heater Switch / Power Seat Control Switch

Kia Forte 2019-2023 (BD) Service Manual / Body Electrical System / Seat Heater Switch / Power Seat Control Switch

Repair procedures
Inspection
1.

Remove the front seat outer shield cover.

(Refer to Body - "Front Seat Outer Shield Cover")

2.

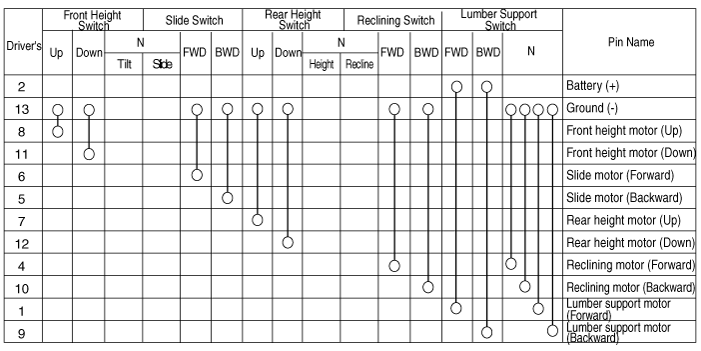

When the battery power is supplied to the power seat control switch connector, check the motor for smooth operation.

Removal
1.

Remove the front seat outer shield cover.

(Refer to Body - "Front Seat Outer Shield Cover")

2.

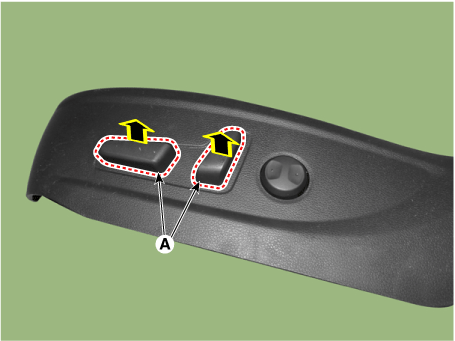

Remove the knob (A) from the power seat control switch.

3.

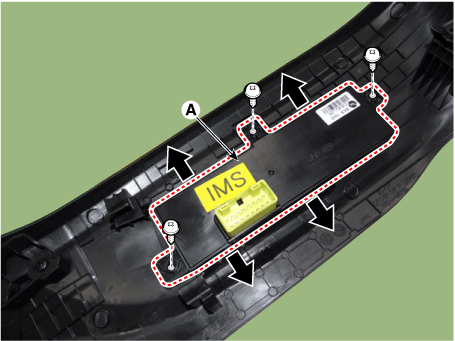

Remove the power seat control switch (A) after loosening the screws.

Installation
1.

Install in the reverse order of removal.
