Components and components location

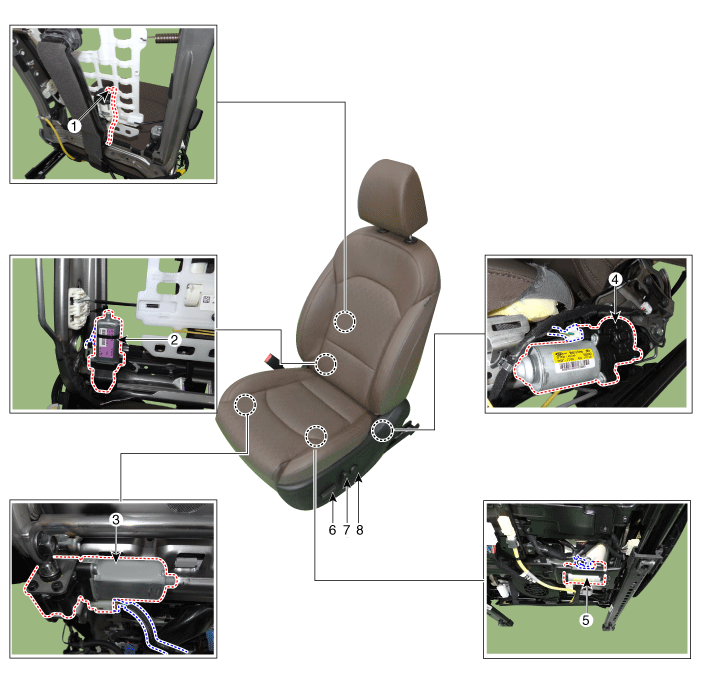

Components

1. Lumber support motor
2. Reclining motor
3. Front height motor
4. Rear height motor

5. Slide motor
6. Seat cushion switch
7. Seat back switch
8. Lumber support switch

Description and operation
Description

Power seat motor is driven by a motor in the following.

1.

Slide motor

2.

Front height motor

3.

Rear height motor

4.

Reclining motor

Repair procedures
Inspection
1.

Disconnect the negative (-) battery terminal.

2.

Disconnect the motor connector after removing the seat.

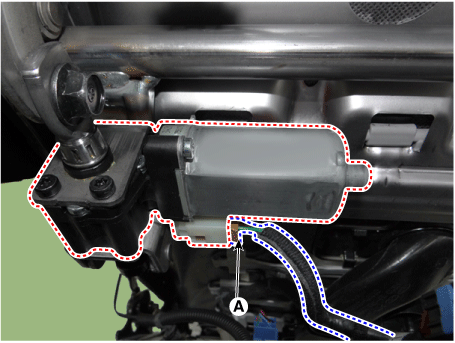

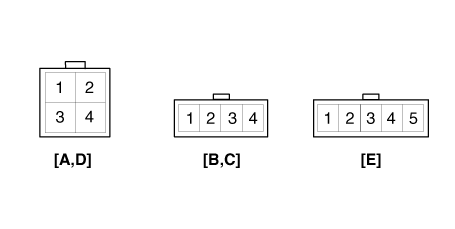

A : Front height motor

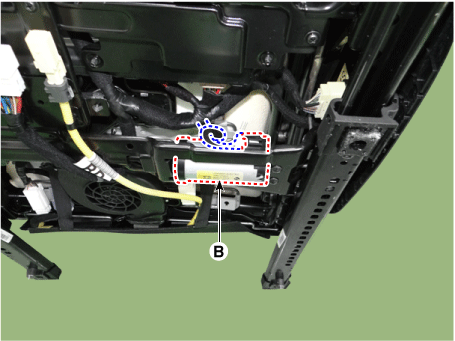

B : Slide motor

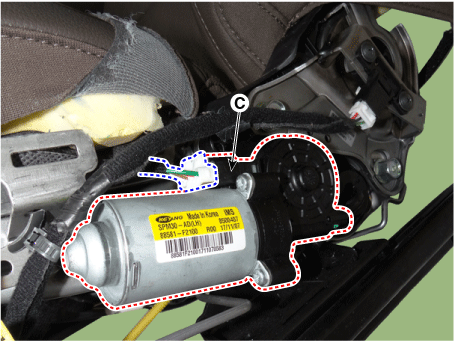

C : Rear height motor

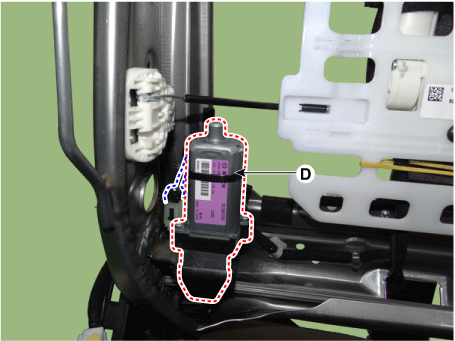

D : Reclining motor

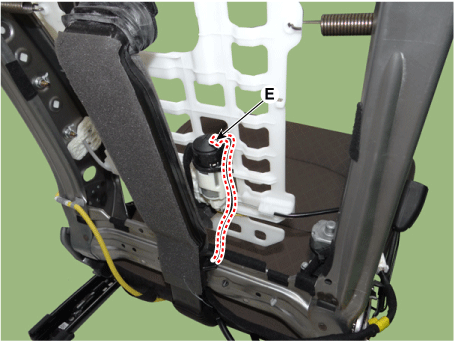

E : Lumber support motor

3.

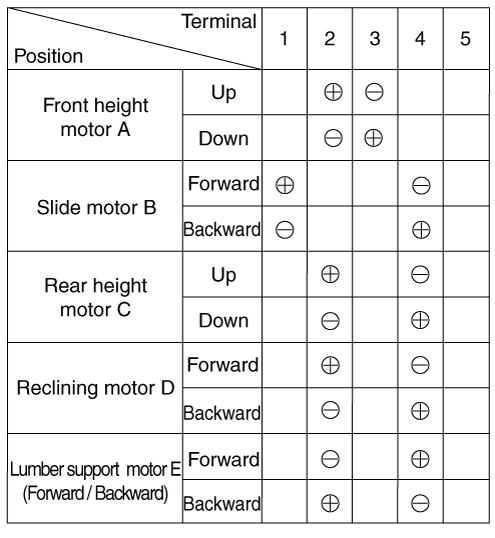

When the battery power is supplied to the motor connector, check the motor for smooth operation.

4.

Reverse the connections and check that the motor turns in reverse.

5.

If the motor runs abnormally, replace it.
