Kia Forte: Seat Heater Switch / Lumber Support System

Kia Forte 2019-2023 (BD) Service Manual / Body Electrical System / Seat Heater Switch / Lumber Support System

Repair procedures
Inspection
1.

Remove the front seat back.

(Refer to Body - "Front Seat Back Cover")

2.

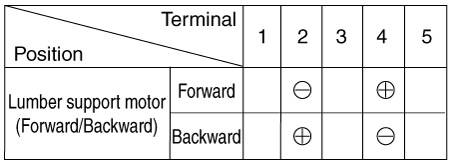

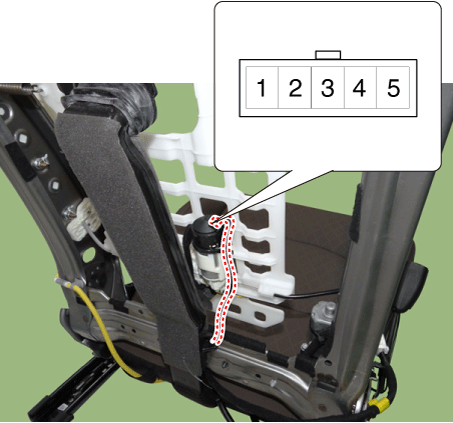

When the battery power is supplied to the motor connector, check the motor for smooth operation.

Removal
1.

Remove the front seat back.

(Refer to Body - "Front Seat Back Cover")

2.

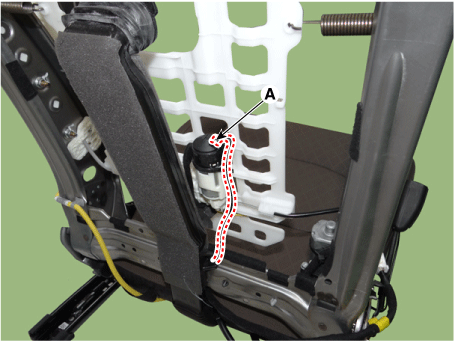

Disconnect the connector (A) from lumber support motor.

3.

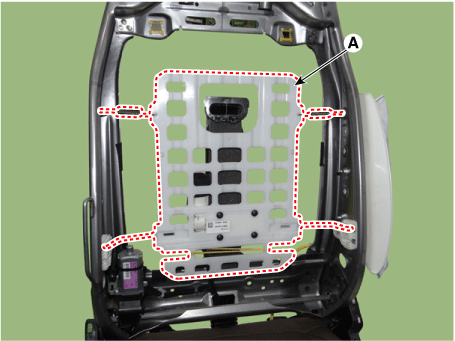

Remove the lumber support (A).

Installation
1.

Install in the reverse order of removal.
