Kia Forte: Front Door / Front Door Module

Kia Forte 2019-2024 (BD) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Module

Components and components location

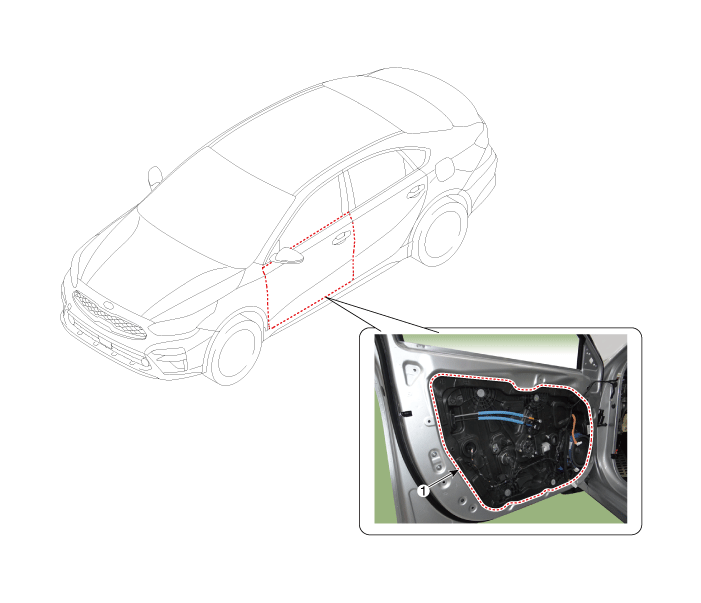

Component Location

1. Front door module


Repair procedures
Replacement
1.

Remove the front door window glass.

(Refer to Front Door - "Front Door Window Glass")

2.

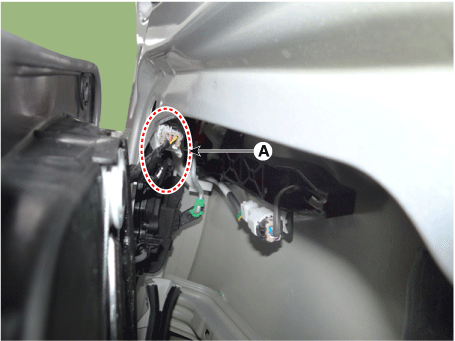

Disconnect the outside rear view mirror connector (A).

3.

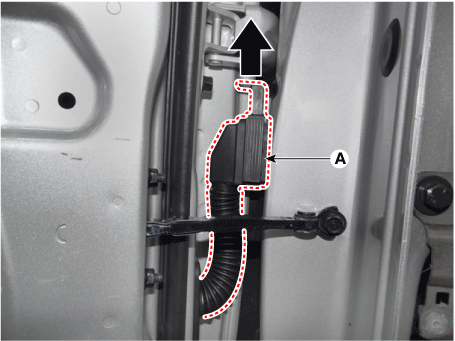

Disconnect the front door main connector (A).

4.

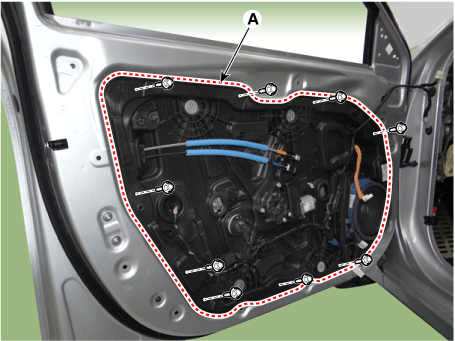

Loosen the mounting bolts and remove the front door module (A).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 Kgf·m, 5.8 - 8.7 lb·ft)

5.

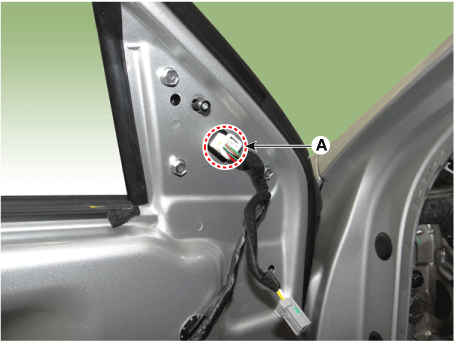

Disconnect the front door latch connector (A).

6.

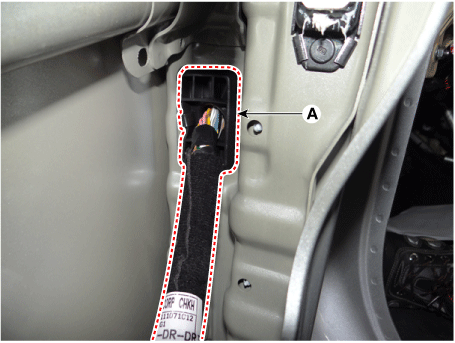

Disconnect the front door main wiring (A).

7.

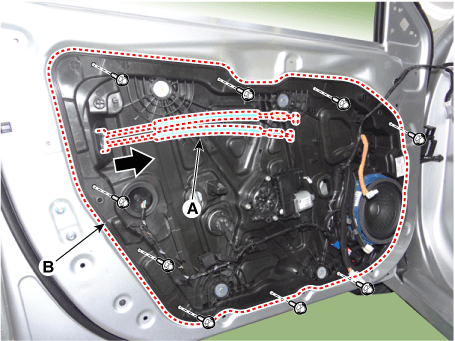

Remove the front door module (B) from the inside handle cable (A) by pulling it in the direction of the arrow

8.

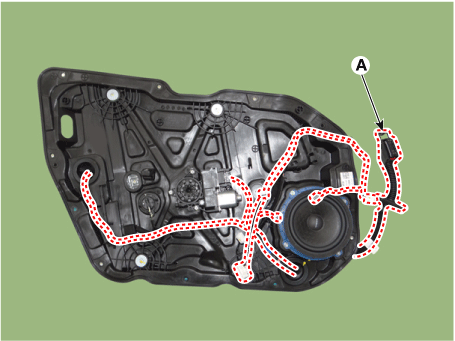

Disconnect the connectors and front door module wiring harness (A).

9.

Reomove the front speaker.

(Refer to Body Electrical System - "Speakers")

10.

Remove the front power window motor.

(Refer to Body Electrical System - "Power Window Motor")

11.

Remove the side impact sensor.

(Refer to Restraint - "Side Impact Sensor (SIS)")

12.

To install, reverse the removal procedure.



Make sure connectors are connected properly and each rod is connected securely.

Make sure the door locks / unlocks and opens / closes properly.

Front Door Window Glass
Components and components location Component Location 1. Front door window glass Repair procedures Replacement 1. Remove ...

Front Door Outside Handle
Components and components location Component Location 1. Front door outside handle Repair procedures Replacement 1. Remo ...
