Kia Forte: Brake System / Parking Brake System

Kia Forte 2019-2022 (BD) Service Manual / Brake System / Parking Brake System

Components and components location

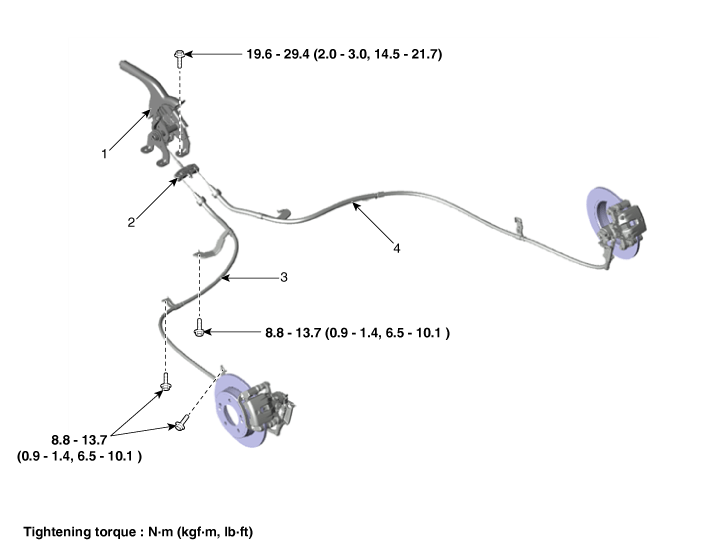

Components

1. Parking brake lever assembly
2. Parking brake front cable
3. Parking brake cable [LH]
4. Parking brake cable [RH]
