Use the sunvisor to shield direct light through the front or side windows.

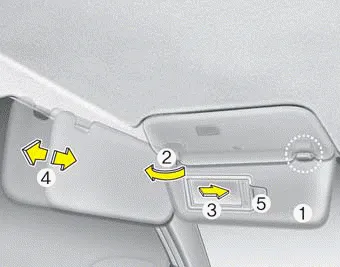

To use the sunvisor, pull it downward. To use the sunvisor for the side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the visor and slide the mirror cover (3).
Adjust the sunvisor extension forward or backward (4) (if equipped).
The ticket holder (5) is provided for holding a tollgate ticket.
* The actual sunvisor lamp in the vehicle may differ from the illustration.
CAUTION - Vanity mirror lamp
If you use the vanity mirror lamp, turn off the lamp before returning the sunvisor to its original position, otherwise it could result in battery discharge and possible sunvisor damage.
CAUTION - Ticket holder
CAUTION
Do not put several tickets in the ticket holder at one time. This could cause damage to the ticket holder.
The temperature setting of the seat changes according to the switch position. If you want to ventilate your seat cushion, press the switch (blue color).
To move forward Grab the front portion of the armrest, then press up the lever (1) and pull it forward To move rearward Push the armrest rearward with your palm.
T
WARNING Prior to working on the Interior lamps, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock. 1. Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.
