Kia Forte: Your vehicle at a glance / Engine compartment

Kia Forte 2019-2024 (BD) Owner's Manual / Your vehicle at a glance / Engine compartment

■ Nu 2.0L MPI Engine (Gasoline)

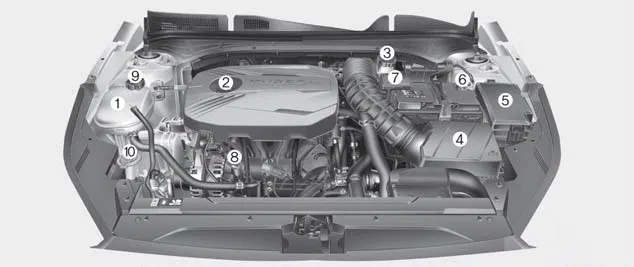

■ Gamma 1.6L T-GDI Engine (Gasoline)

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10. Windshield washer fluid reservoir
