Kia Forte: Light bulbs / Glove box lamp replacement

Kia Forte 2019-2021 (BD) Owners Manual / Maintenance / Light bulbs / Glove box lamp replacement

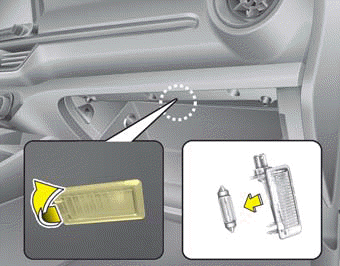

1. Using a flat-blade screwdriver, gently pry the lamp assembly from interior.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb in the socket.

4. Install the lamp assembly to interior.

CAUTION

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
