Kia Forte: Timing System / Front Oil Seal

Kia Forte 2019-2025 (BD) Service Manual / Engine Mechanical System / Timing System / Front Oil Seal

Components and components location
Components

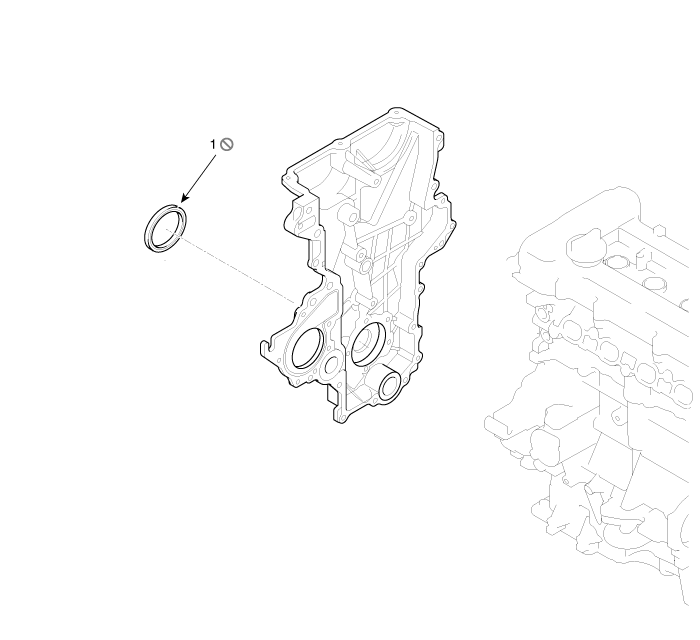

1. Front oil seal

Repair procedures
Replacement
1.

Remove the crankshaft damper pulley.

(Refer to Drive Belt System - "Crankshaft Damper Pulley")

2.

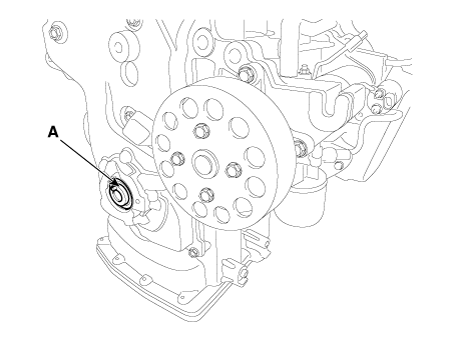

Remove the front oil seal (A).

3.

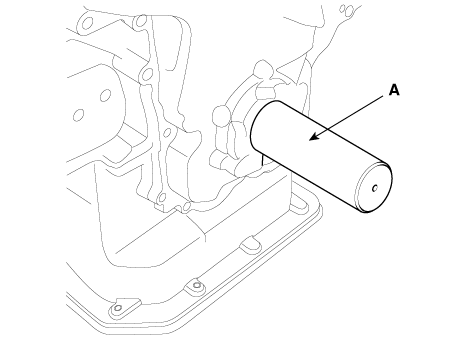

Using the SST (09455-21200) (A), install a new front oil seal.



Do not reuse the front oil seal.

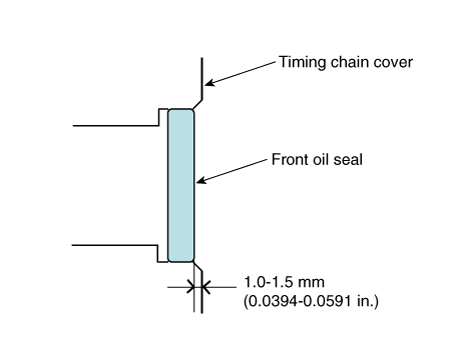

Insert the oil seal into the timing chain cover as shown in illustration.
