Fan speed control

The ignition switch must be in the ON position for fan operation.

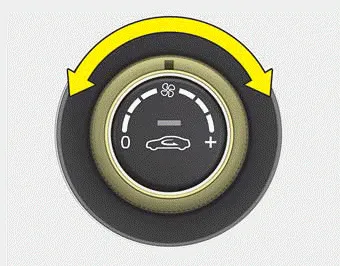

The fan speed control knob allows you to control the fan speed of the air flowing from the ventilation system. To change the fan speed, turn the knob to the right for higher speed or left for lower speed.

Setting the fan speed control knob to the “0” position turns off the fan.

Air conditioning

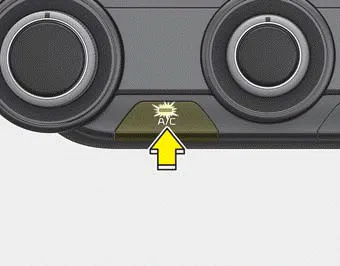

Press the A/C button to turn the air conditioning system on (indicator light will illuminate). Press the button again to turn the air conditioning system off.

Temperature & Air intake control
Temperature control The temperature control knob allows you to control the temperature of the air flowing from the ventilation system. To change the air temperature in the passenger compart ...

System operation
Ventilation 1.Set the mode to the position. 2.Set the air intake control to the outside (fresh) air position. 3.Set the temperature control to the desired position. 4.Set the fan speed contro ...
