Kia Forte: Your vehicle at a glance / Exterior overview

Kia Forte 2019-2023 (BD) Owners Manual / Your vehicle at a glance / Exterior overview

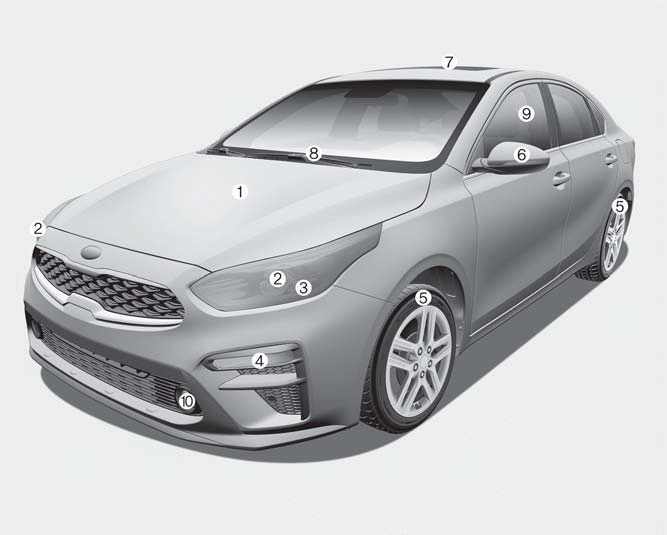

■ Front view

1. Hood
2. Head lamp (Features of your vehicle)
Head lamp (Maintenance)
3. DRL lamp (Features of your vehicle)
DRL lamp (Maintenance)
4. Front turn signal lamp (Maintenance)
5. Wheel and tire
6. Outside rearview mirror
7. Sunroof
8. Front windshield wiper blades (Features of your vehicle)
Front windshield wiper blades (Maintenance)
9. Windows
10. Front fog lamp (Features of your vehicle)
Front fog lamp (Maintenance)

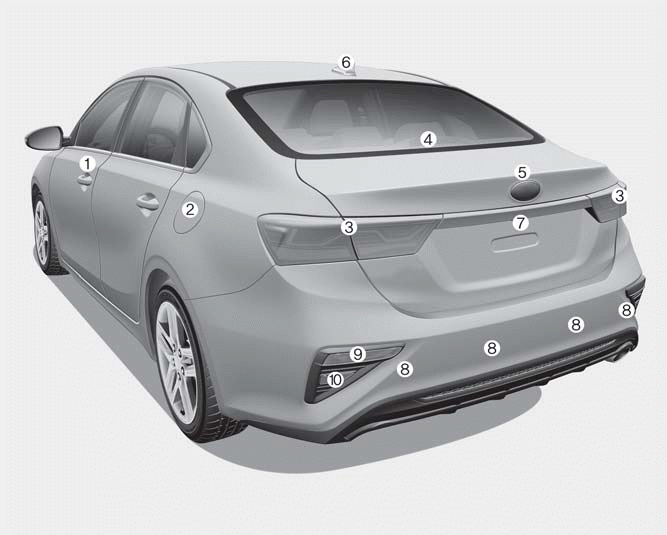

■ Rear view

1. Door locks
2. Fuel filler lid
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Trunk
6. Antenna
7. Rear view monitor
8. Reverse parking distance warning
9. Rear turn signal lamp (Maintenance)
10. Back Up lamp (Maintenance)
