Kia Forte: Fuses And Relays / Engine Room Junction Block

Kia Forte 2019-2020 (BD) Service Manual / Body Electrical System / Fuses And Relays / Engine Room Junction Block

Components and components location

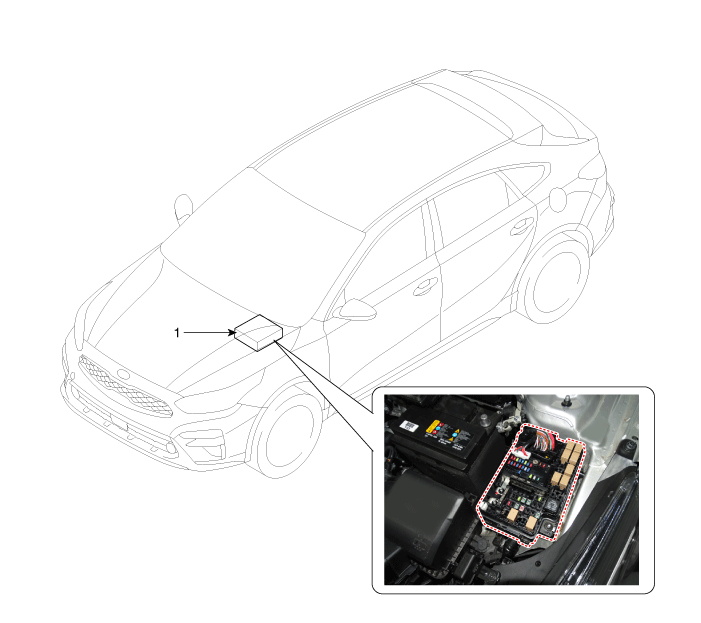

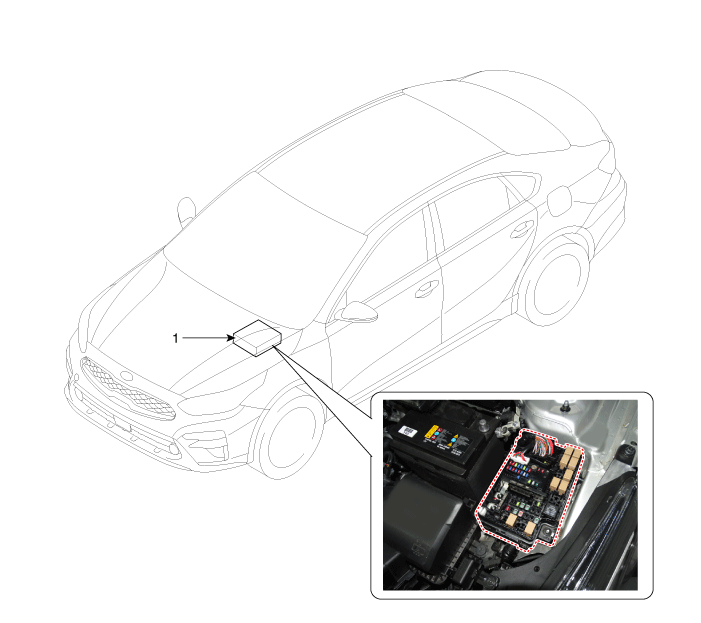

Components Location
[4DR]

1. Engine room junction block


[5DR]

1. Engine room junction block


Repair procedures
Inspection

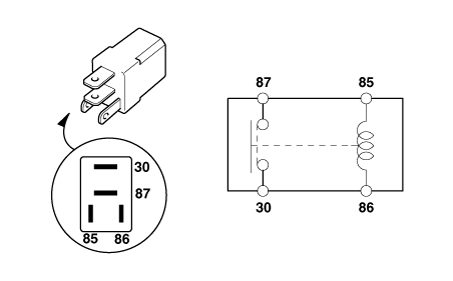

Power Relay (Type A)

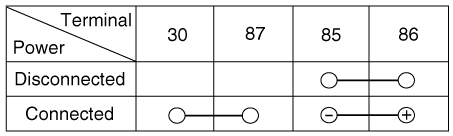

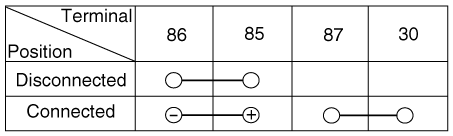

Check for continuity between the terminals.

1.

After supplying power to between No. 85 and 86 power relay terminals, check that there is continuity between No. 30 and 87 terminals.

2.

After disconnecting power between No. 85 and 86 power relay terminals, check that there is no continuity between No. 30 and 87 terminals.

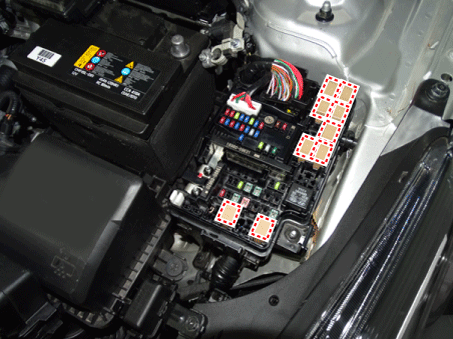

Engine Room Relay Block

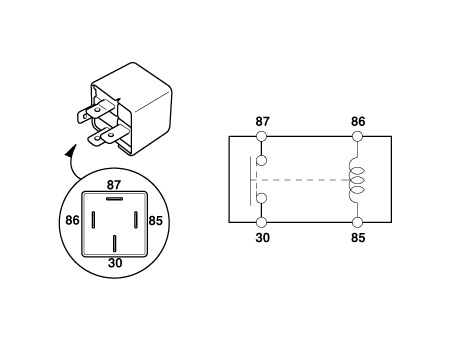

Power Relay (Type B)

Check for continuity between the terminals.

1.

After supplying power to between No. 85 and 86 power relay terminals, check that there is continuity between No. 30 and 87 terminals.

2.

After disconnecting power between No. 85 and 86 power relay terminals, check that there is no continuity between No. 30 and 87 terminals.

Fuse

1.

Check that the fuse holders are loosely held and that the fuses are securely fixed by the holders.

2.

Check that each fuse circuit has the exact fuse capacity.

3.

Check the fuses for any damage.



If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always identify the cause of the blown fuse and completely eliminate the problem before installing a new fuse.

Multi Fuse

1.

Disconnect the negative (-) battery terminal.

2.

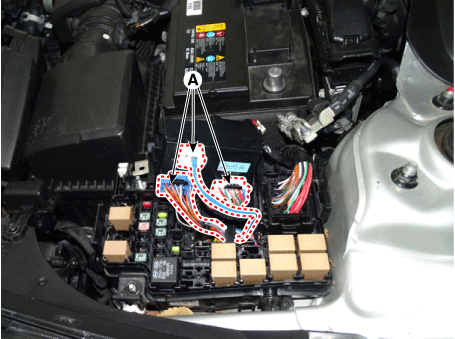

Remove the power cable terminals (A) after loosening the nuts.

3.

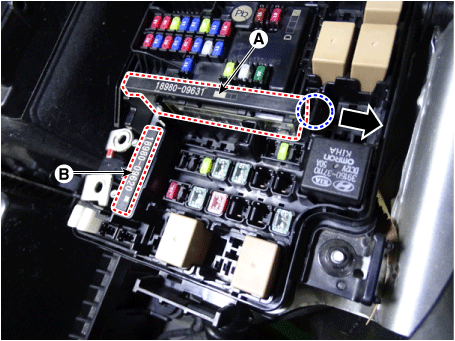

Remove the multi fuse (A) and then remove multi fuse (B).

4.

Check the multi fuses for any damage.



The entire multi fuse has to be replaced even if only one fuse is damaged.

Use the multi fuse of the exact fuse capacity.

Removal

Metal Core PCB Block

1.

Disconnect the negative (-) battery terminal.

2.

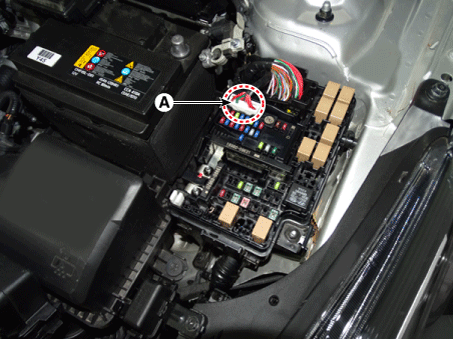

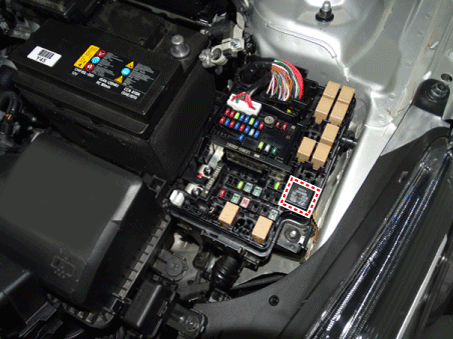

Disconnect the connector (A).

3.

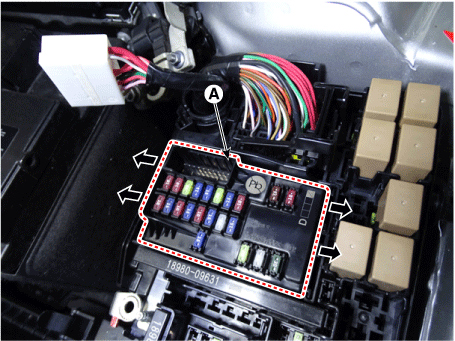

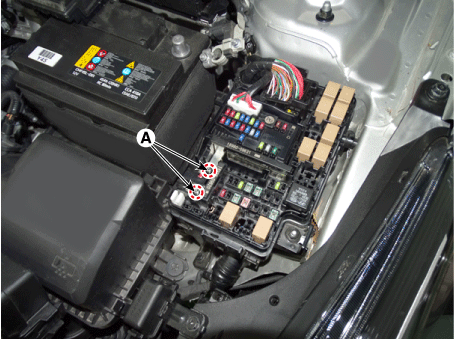

Push the hooks in the direction of the arrow and lift up the metal core PCB block (A).

4.

Disconnect the connector (A) from the metal core PCB block.

Installation
1.

Install in the reverse order of removal.
