Kia Forte: Body Side Molding / Delta Garnish
Repair procedures
|
Put on gloves to prevent hand injuries.
|
| • |
When removing with a flat - tip screwdriver or remover, wrap
protective tape around the tools to prevent damage to components.
|
| • |
Take care not to scratch the body surface.
|
|
| 1. |

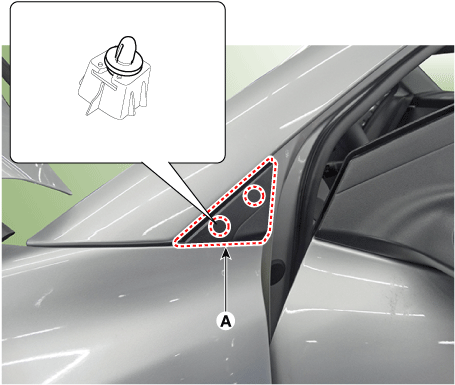

Using a screwdriver or remover, remove the delta garnish (A).
|
| 2. |
To install, reverse the removal procedure.
|
Replace any damaged clips (or pin - type retainers).
|
|
Repair procedures
Replacement
Put on gloves to prevent hand injuries.
& ...
Repair procedures
Replacement
Put on gloves to prevent hand injuries.
& ...
