Kia Forte: Body Side Molding / Roof Side Molding

Kia Forte 2019-2024 (BD) Service Manual / Body (Interior and Exterior) / Body Side Molding / Roof Side Molding

Repair procedures
Replacement


Put on gloves to prevent hand injuries.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

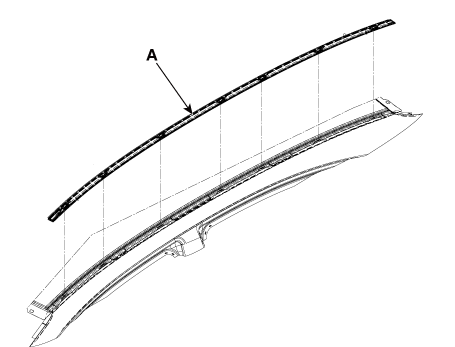

Using a remover, remove the roof side molding (A).

2.

To install, reverse removal procedure.
