Components and components location

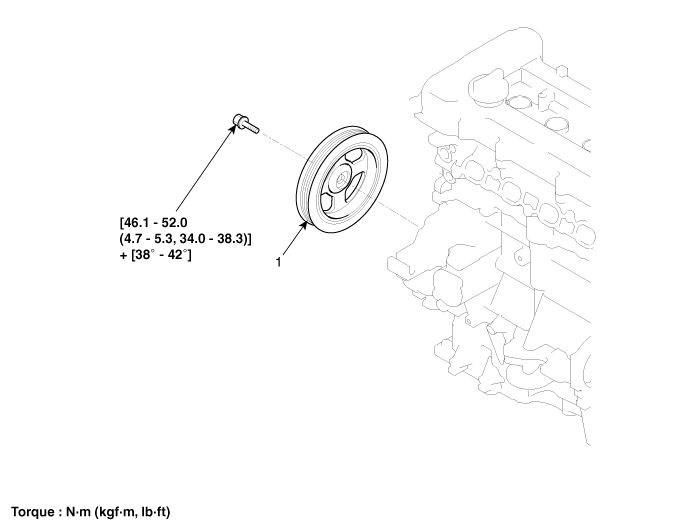

Components

1. Crankshaft damper pulley

Repair procedures
Removal and Installation
1.

Remove the drive belt.

(Refer to Drive Belt System - "Drive Belt")

2.

Remove the engine room under cover.

(Refer to Engine and Transmission Assembly - "Engine Room Under Cover")

3.

Remove the R side front wheel.

(Refer to Suspension System - "Wheel")

4.

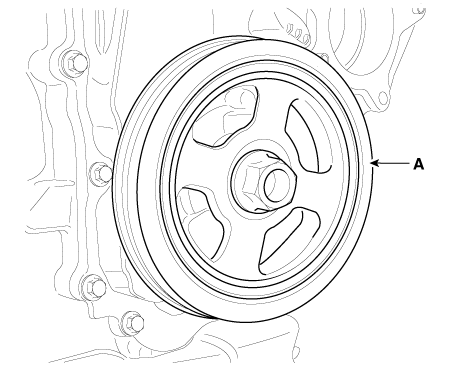

Remove the crankshaft damper pulley (A).

Tightening torque :

46.1 - 52.0 ·m (4.7 - 5.3 kgf·m, 34.0 - 38.3 lb·ft) + 38° - 42°

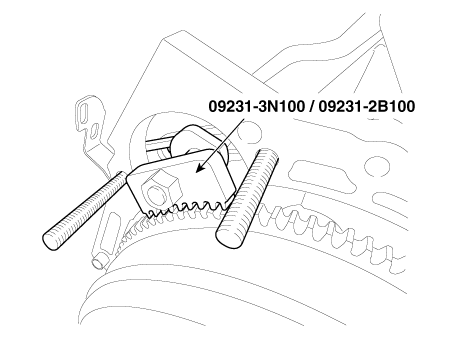

Fix the ring gears using the SST (09231-3N100, 09231-2B100) after remove the starter. Then Remove the crankshaft damper pulley bolt.

Inspection

Check the crankshaft damper pulley for vibration in rotation, oil dust deposit of V-ribbed part. Replace if necessary.
