Kia Forte: Brake System / Brake Line

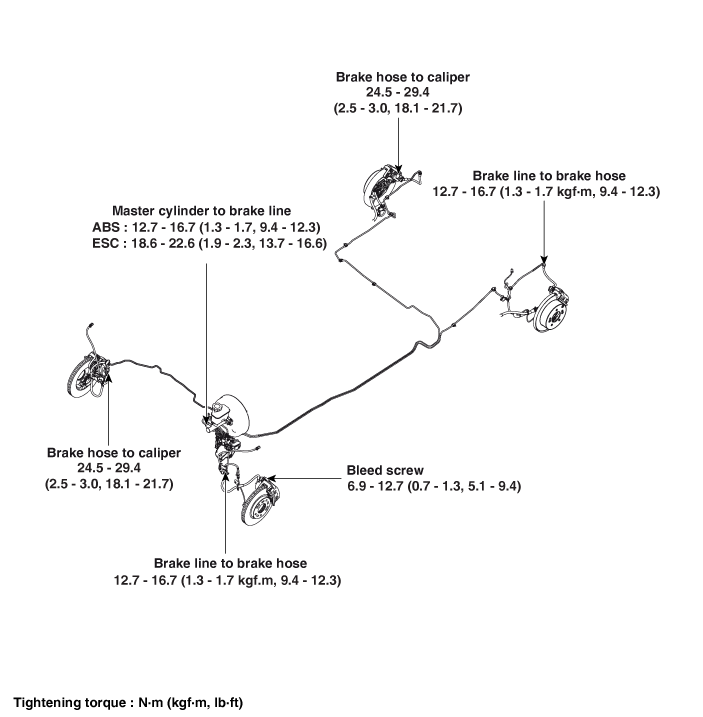

Components and components location
Repair procedures
Front
| 1. |
Disconnect the battery negative terminal.
|
| 2. |

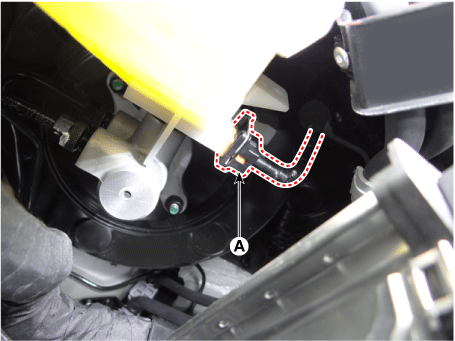

Disconnect the brake fluid level sensor connector (A).
|
| 3. |
Remove the brake fluid from the master cylinder reservoir with a syringe.
|
Do not spill brake fluid on the vehicle as it may damage the
paint. If brake fluid comes in contact with the paint, wash off
immediately with water.
|
|
| 4. |

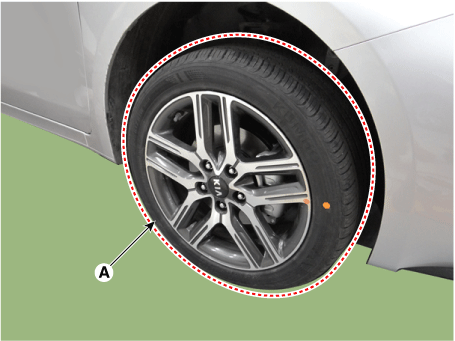

Remove the front wheel and tire (A).
|
Tightening torque:
107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)
|
|
Be careful not to damage to the hub bolts when removing the front
wheel and tire.
|
|
| 5. |

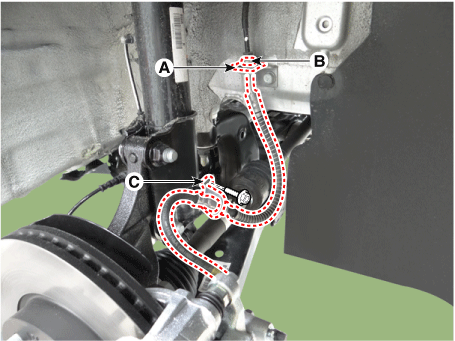

Remove the brake hose clips (A).
|
| 6. |
Disconnect the brake hoses by loosening the flare nuts (B).
|
Tightening torque :
12.7 - 16.7 N·m (1.3 - 1.7 kgf·m, 9.4 - 12.3 lb·ft)
|
|
| 7. |
Disconnect the brake hose bracket (C) by loosening the bolt.
|
Tightening torque :
8.8 - 13.7 N·m (0.9 - 1.4 kgf·m, 6.5 - 10.1 lb·ft)
|
|
| 8. |

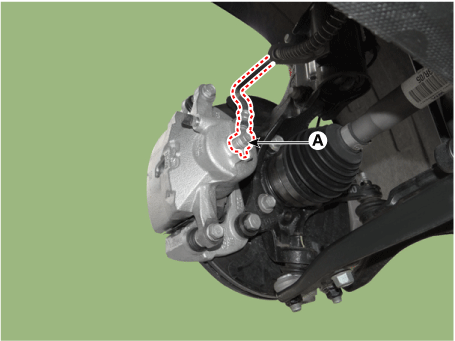

Remove the brake hose (A) from the brake caliper by loosening the bolt.
|
Tightening torque :
24.5 - 29.4 N·m (2.5 - 3.0 kgf·m, 18.1 - 21.7 lb·ft)
|
|
| 9. |
Install in the reverse order of removal.
|

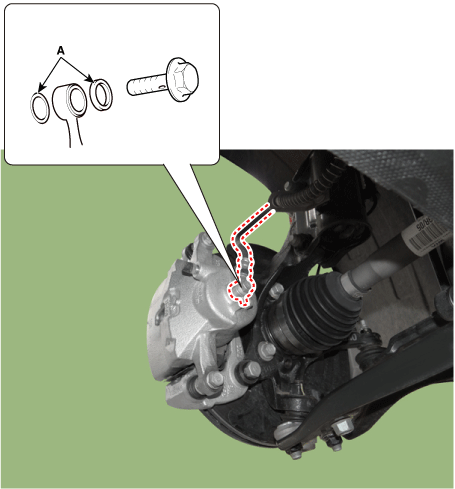

Use a new washers (A) whenever installing.
|
|
| 10. |
After installation, bleed the brake system.
(Refer to Brake system - "Brake Bleeding Prcoedures")
|
| 11. |
Check the spilled brake oil.
|
Rear
| 1. |
Disconnect the battery negative terminal.
|
| 2. |
Disconnect the brake fluid level sensor connector (A).
|
| 3. |
Remove the brake fluid from the master cylinder reservoir with a syringe.
|
Do not spill brake fluid on the vehicle as it may damage the
paint. If brake fluid comes in contact with the paint, wash off
immediately with water.
|
|
| 4. |

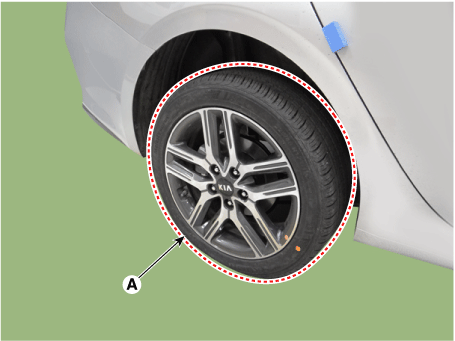

Remove the rear wheel and tire (A).
|
Tightening torque:
107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)
|
|
Be careful not to damage to the hub bolts when removing the rear
wheel and tire.
|
|
| 5. |
Remove the brake hose clips (A).
|
| 6. |
Disconnect the brake hoses by loosening the flare nuts (B).
|
Tightening torque :
12.7 - 16.7 N·m (1.3 - 1.7 kgf·m, 9.4 - 12.3 lb·ft)
|
|
| 7. |
Remove the brake hose (A) from the brake caliper by loosening the bolt.
|
Tightening torque :
24.5 - 29.4 N·m (2.5 - 3.0 kgf·m, 18.1 - 21.7 lb·ft)
|
|
| 8. |
Install in the reverse order of removal.
|

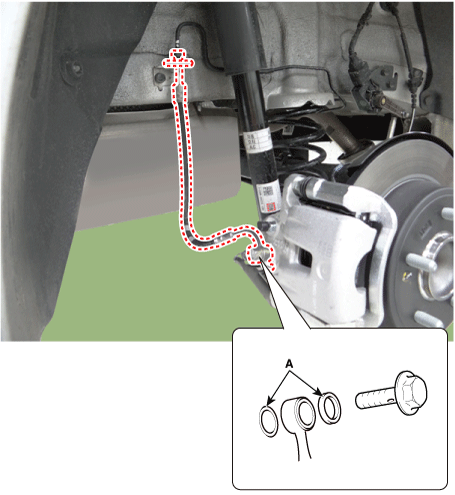

Use a new washers (A) whenever installing.
|
|
| 9. |
After installation, bleed the brake system.
(Refer to Brake system - "Brake Bleeding Prcoedures")
|
| 10. |
Check the spilled brake oil.
|
| 1. |
Check the brake tubes for cracks, crimps and corrosion.
|
| 2. |
Check the brake hoses for cracks, damage and fluid leakage.
|
| 3. |
Check the brake tube flare nuts for damage and fluid leakage.
|
| 4. |
Check brake hose mounting bracket for crack or deformation.
|
