Kia Forte: Trunk Lid / Trunk Lid Trim
Components and components location
Repair procedures
|
Put on gloves to prevent hand injuries.
|
| • |
When removing with a flat - tip screwdriver or remover, wrap
protective tape around the tools to prevent damage to components.
|
| • |
Take care not to scratch the body surface.
|
|
| 1. |

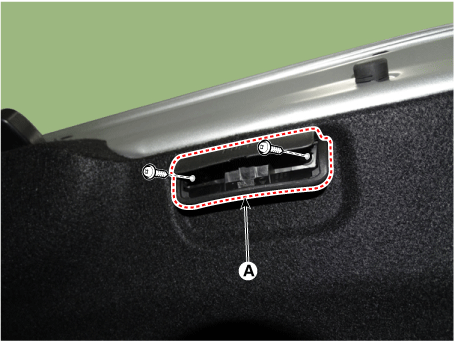

Loosen the mounting screw and remove the trunk handle (A).
|
| 2. |

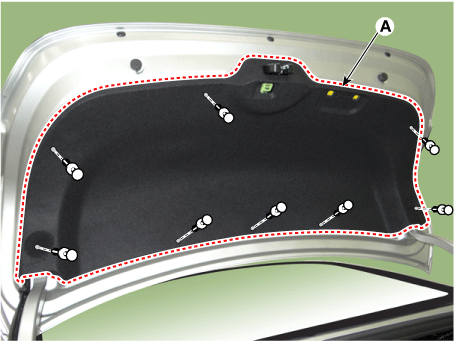

After loosening the mounting clips, then remove the trunk lid trim (A).
|
| 3. |
To install, reverse the removal procedure.
|
Replace any damaged clips.
|
|
Components and components location
Component Location

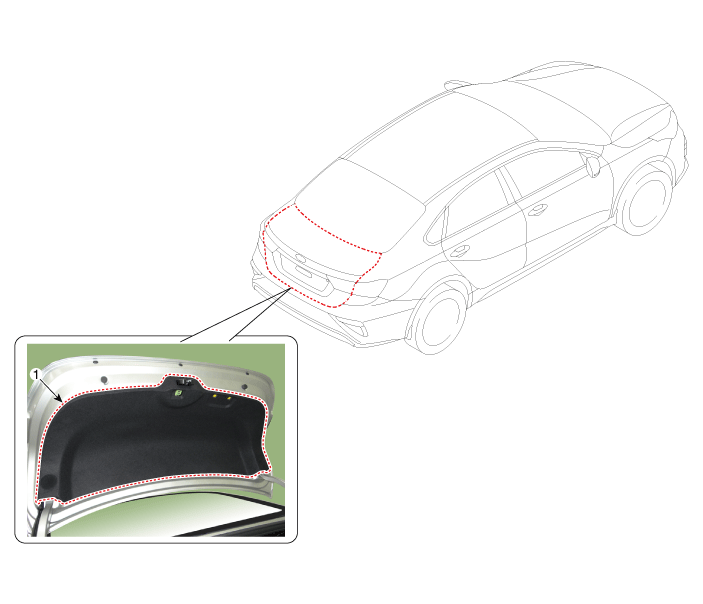

1. Trunk lid assembly
Repair procedures
Replacement
&nb ...
Repair procedures
Replacement
•
When prying with a flat-tip screwdriver, wrap it with prote ...
