Kia Forte: Trunk Lid / Trunk Lid Assembly

Kia Forte 2019-2022 (BD) Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Assembly

Components and components location
Component Location

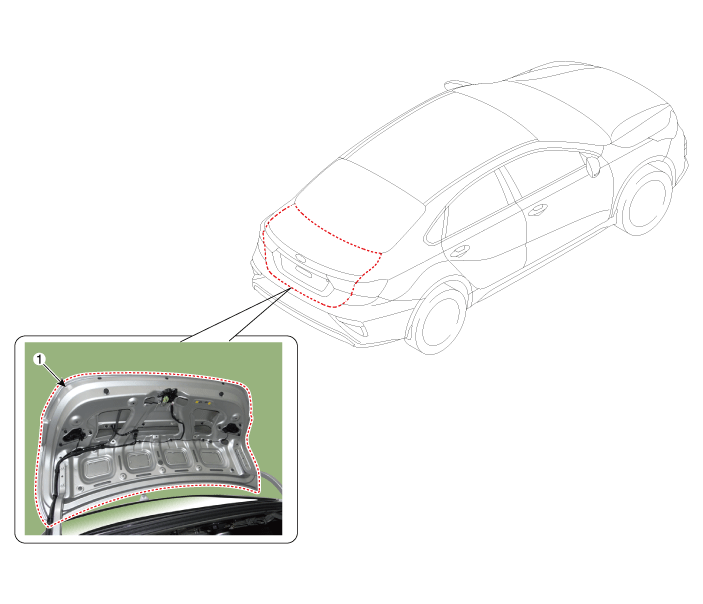

1. Trunk lid assembly


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing and installing the trunk lid, an assistant is necessary.

Be careful not to damage the trunk lid and body surface.

1.

Remove the trunk lid trim.

(Refer to Trunk Lid - "Trunk Lid Trim")

2.

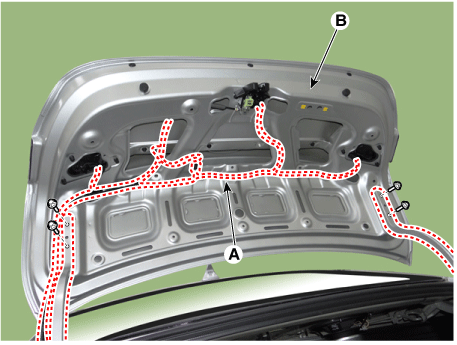

Disconnect the connectors and trunk lid wiring harness (A).

3.

After loosening the mounting bolts, remove the trunk lid assembly (B).

Tightening torque :

8.8 - 11.8 N·m (0.9 - 1.2 Kgf·m, 6.5 - 8.7 lb·ft)

4.

To install, reverse the removal procedure.



Make sure the trunk lid locks / unlocks and opens / closes properly.

Adjust the trunk lid as necessary.

Make sure the connectors are connected in properly.

Replace any damaged clips.
