Kia Forte: Sunroof / Sunroof Sunshade

Kia Forte 2019-2025 (BD) Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Sunshade

Repair procedures
Replacement
1.

Remove the sunroof assembly.

(Refer to Sunroof - "Sunroof Assembly")

2.

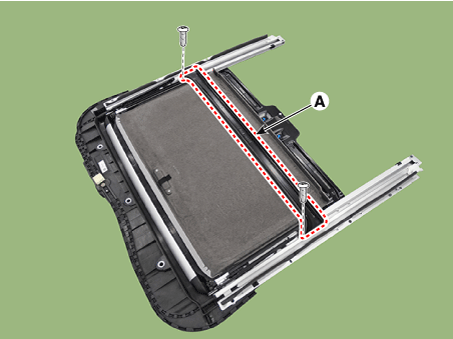

After loosening the mounting screws, remove the drip rail assembly (A).

3.

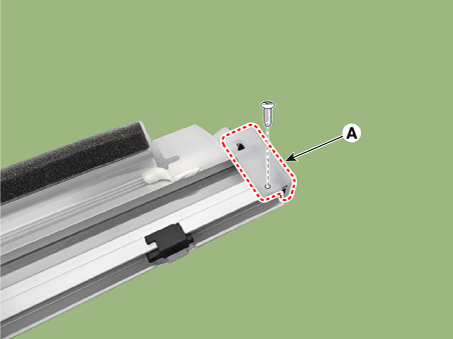

After loosening the mounting screws, disengage the rear drip (A).

4.

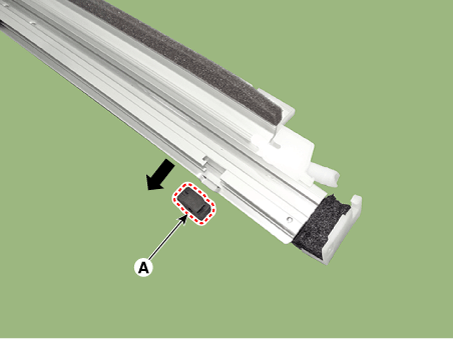

Remove the stopper (A) by pushing it in the direction of the arrow.

5.

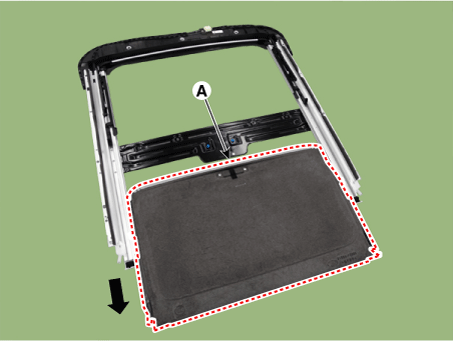

Remove the sunroof sunshade (A) by pushing it backward.

6.

To install, reverse the removal procedure.
