Kia Forte: Button Engine Start System / Start/Stop Button

Kia Forte 2019-2024 (BD) Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button

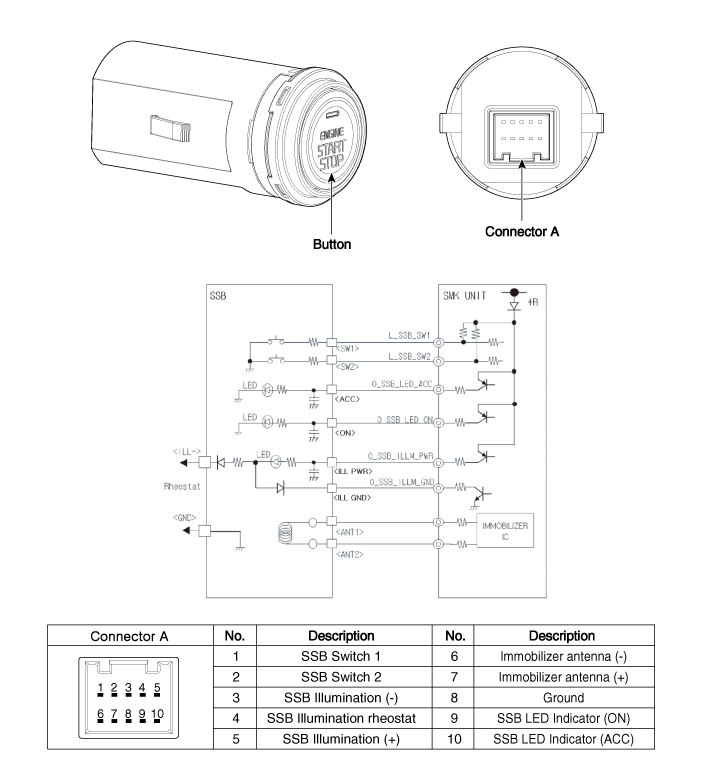

Schematic diagrams
Connector and Terminal function

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the crash pad center lower panel.

(Refer to Body - "Crash Pad Center Lower Panel")

3.

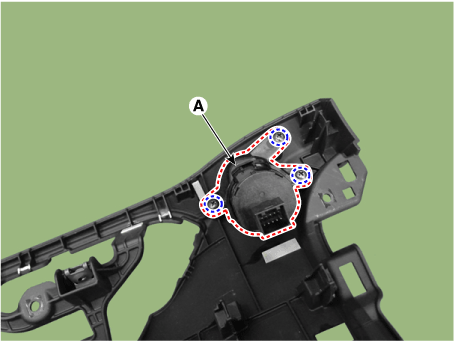

Remove the button start switch (A) after loosening the screws.

Installation
1.

Install in the reverse order of removal.
