Kia Forte: Interior features / Seat warmer

Kia Forte 2019-2020 (BD) Owners Manual / Features of your vehicle / Interior features / Seat warmer

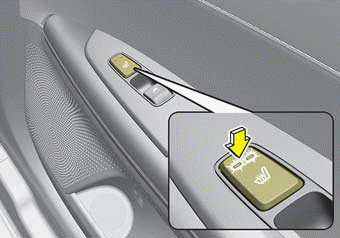

■ Front seat

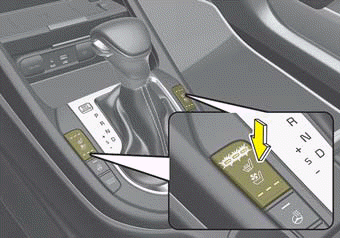

■ Rear seat

The seat warmer is provided to warm the front seats during cold weather. With the ignition switch in the ON position, push either of the switches to warm the driver's seat or the front passenger's seat.

During mild weather or under conditions where the operation of the seat warmer is not needed, keep the switches in the "OFF" position.

Temperature control (Manual)

Each time you press the switch, the temperature setting of the seat will change as follows :

■ Front seat

■ Rear seat

• The seat warmer defaults to the OFF position whenever the ignition switch is turned on.

Temperature control(Automatic)

The seat warmer starts to automatically control the seat temperature in order to prevent low-temperature burns after being manually turned ON.

You may manually press the button to increase the seat temperature. However, it soon returns to the automatic mode again.

✽ NOTICE

With the seat warmer switch in the ON position, the heating system in the seat turns off or on automatically depending on the seat temperature.

WARNING - Seat warmer burns

The seat warmer may cause burns, even at low temperatures, if used over a long period of time. Never allow passengers who may not be able to take care of themselves to be exposed to the risk of seat heater burns. These include:

1. Infants, children, elderly or disabled persons, or hospital outpatients

2. Persons with sensitive skin or those that burn easily

3. Fatigued individuals

4. Intoxicated individuals

5. Individuals taking medication that can cause drowsiness or sleepiness (sleeping pills, cold tablets, etc.)
