Kia Forte: Body Side Molding / Rear Wheel Guard
Repair procedures
|
Put on gloves to prevent hand injuries.
|
| • |
When removing with a flat - tip screwdriver or remover, wrap
protective tape around the tools to prevent damage to components.
|
| • |
Take care not to scratch the body surface.
|
|
| 2. |

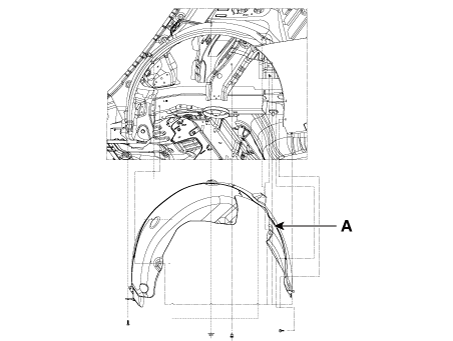

After loosening the mounting clips and screws, remove the rear wheel
guard (A).
|
| 3. |
To install, reverse the removal procedure.
|
Replace any damaged clips (or pin - type retainers).
|
|
Repair procedures
Replacement
Put on gloves to prevent hand injuries.
& ...
Repair procedures
Replacement
Put on gloves to prevent hand injuries.
& ...
Other information:
Repair procedures
Removal and Installation
1.
Remove the rear wheel and tire (A).
Tightening torque :
107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)
...
