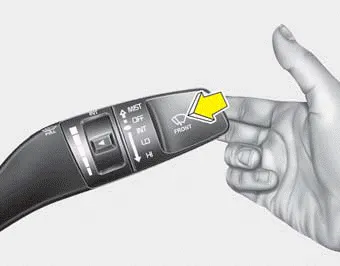

In the OFF position, pull the lever gently toward you to spray washer fluid on the windshield and to run the wipers 1-3 cycles.
Use this function when the windshield is dirty.
The spray and wiper operation will continue until you release the lever.
If the washer does not work, check the washer fluid level. If the fluid level is not sufficient, you will need to add appropriate non-abrasive windshield washer fluid to the washer reservoir.
The reservoir filler neck is located in the front of the engine compartment on the passenger side.
CAUTION - Washer pump
To prevent possible damage to the washer pump, do not operate the washer when the fluid reservoir is empty.
WARNING - Obscured visibility
Do not use the washer in freezing temperatures without first warming the windshield with the defrosters; the washer solution could freeze on the windshield and obscure your vision.
CAUTION - Wipers & windshields
A : Wiper speed control (front) · MIST – Single wipe · OFF – Off · INT – Intermittent wipe · LO – Low wiper speed · HI – High wiper speed B : Intermittent control wipe time adjustment C :Wash with brief wipes (front)* Windshield wipers Operates as follows when the ignition switch is turned ON.
Do not use the interior lights for extended periods when the engine is not running as this may cause battery discharge. WARNING - Interior Lights Do not use the interior lights when driving in the dark.
- For 15/16 inch tire System voltage: DC 12 V Working voltage: DC 10 - 15 V Amperage rating: MAX. 10 ± 1 A (at DC 12V operation) Suitable for use at temperatures: -30 ~ +70°C (-22 ~ +158°F) Max. working pressure: 6 bar (87 psi) Size Compressor: 161 x 150 x 55.
Dimensions Engine Bulb wattage Tires and wheels CAUTION When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make them work irregularly. ✽ NOTICE It is permissible to add 21 kPa (3 psi) to the standard tire pressure specificatio
