Kia Forte: Your vehicle at a glance / Interior overview

Kia Forte 2019-2024 (BD) Owners Manual / Your vehicle at a glance / Interior overview

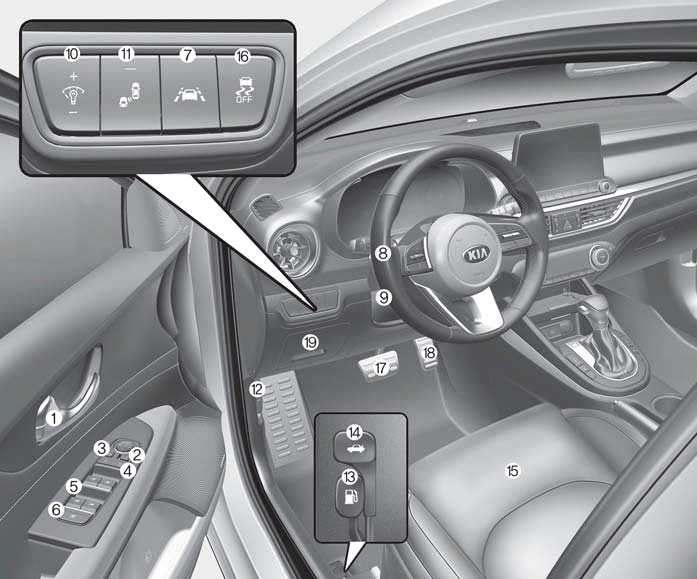

1. Inside door handle
2. Outside rearview mirror control
3. Outside rearview mirror folding
4. Central door lock switch
5. Power window switch
6. Power window lock button
7. Lane Keeping Assist system button
8. Steering wheel
9. Tilt and telescopic steering control lever
10. Instrument panel illumination control
11. BCW ON/OFF button
12. Hood release lever
13. Fuel filler lid release lever
14. Trunk release lever
15. Seat
16. ESC OFF button
17. Brake pedal
18. Accelerator pedal
19. Inner fuse panel
