Components and components location

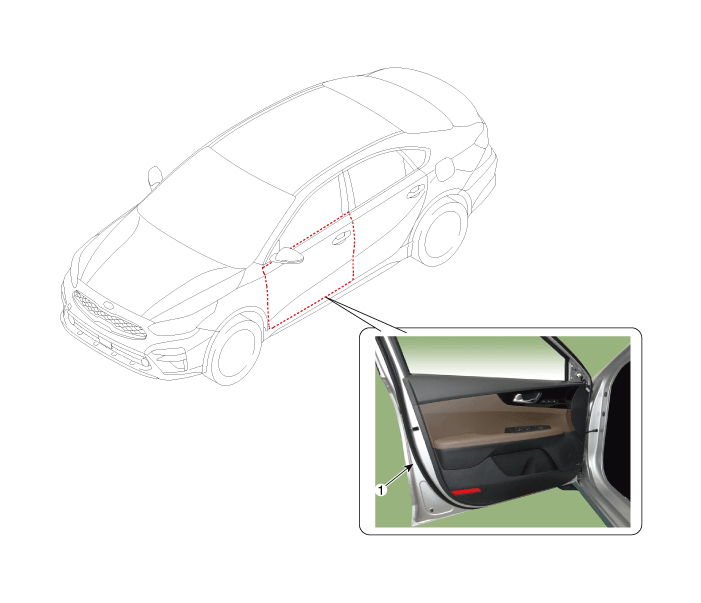

Component Location

1. Front door trim


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Be careful not to scratch the door trim and other parts.

1.

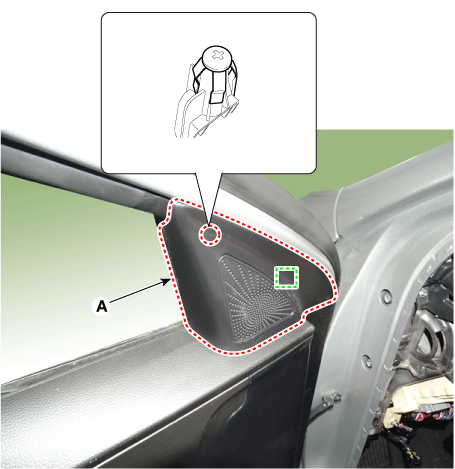

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

2.

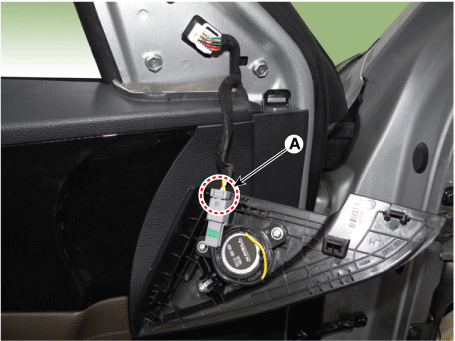

Disconnect the twitter speaker connector (A) and then remove the front door quadrant inner cover.

3.

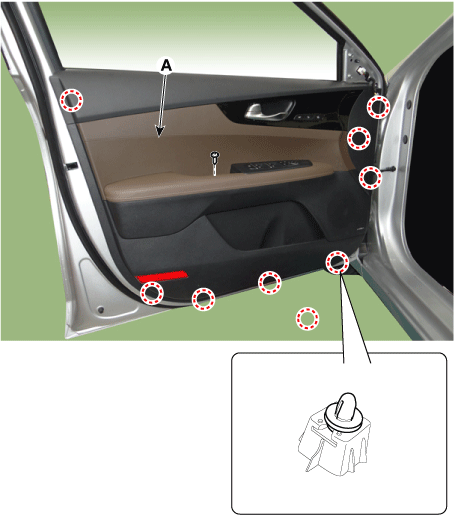

After loosening the mounting screw, remove the lower part of the front door trim (A) using a flat - tip screwdriver.

4.

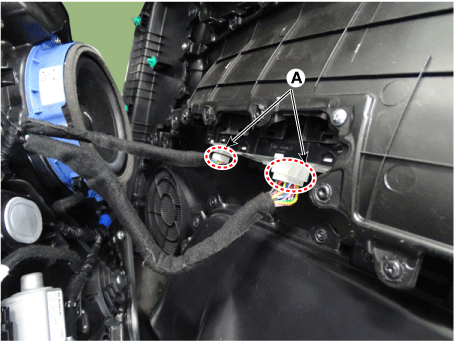

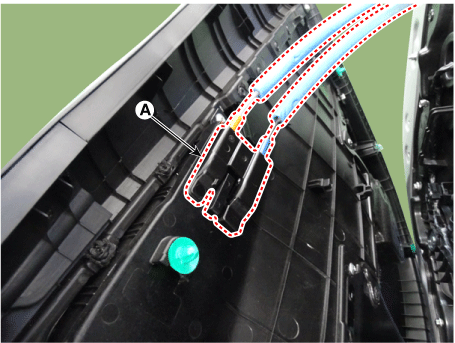

Remove the front door inside handle cage (A).

5.

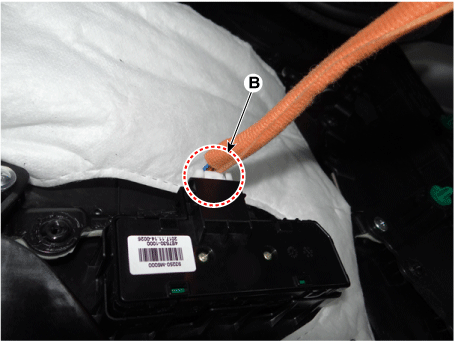

Disconnect the IMS switch connector (B) and power window switch connector (A).

6.

To install, reverse the removal procedure.



Make sure the connector is connected properly.

Make sure the door locks / unlocks and opens / closes properly.

Replace any damaged clips (or pin - type retainers).

Make sure the glass is operated properly.
