Kia Forte: Maintenance / Engine compartment
![](images/engine_compartment-318/1/forte_346.png)

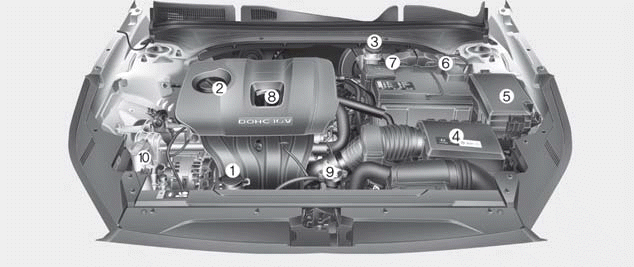

■ Nu 2.0L MPI Engine (Gasoline)
![](images/engine_compartment-318/1/forte_163.png)

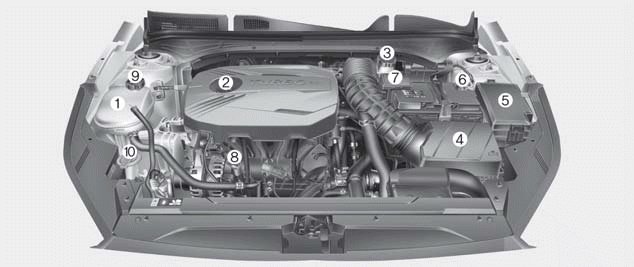

■ Gamma 1.6L T-GDI Engine (Gasoline)
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake / clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10.Windshield washer fluid reservoir
You should exercise the utmost care
to prevent damage to your vehicle
and injury to yourself whenever performing
any maintenance or inspection
procedures.
Should you have any doubts concernin ...
