Kia Forte: Emergency Call System / Emergency Call (E-Call) Switch

Kia Forte 2019-2022 (BD) Service Manual / Body Electrical System / Emergency Call System / Emergency Call (E-Call) Switch

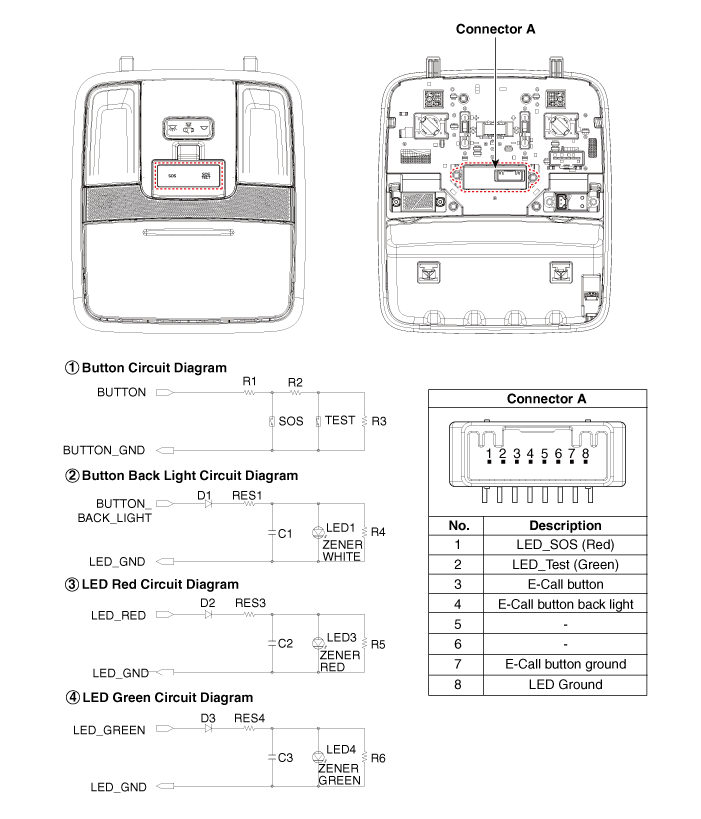

Schematic diagrams
Circuit Diagram

Repair procedures
Replacement
1.

If the E-Call switch needs to be replaced, replace the overhead console lamp assembly.

(Refer to Lighting System - "Overhead Console Lamp")

Emergency Call (E-Call) Unit
