Kia Forte: Power Train / Cooling System

Kia Forte 2019-2020 (BD) Service Manual / Maintenance / Power Train / Cooling System

Repair procedures
Inspection

Radiator hoses

1.

Check radiator hoses for the following

(1)

Improper attachment

(2)

Leaks

(3)

Cracks

(4)

Damage

(5)

Loose connections

(6)

Chafing

(7)

Deterioration

Coolant level

1.

Check the coolant level in the coolant reservoir. Make sure it is between the "F" mark and "L" mark.

2.

If the coolant level in the coolant reservoir is at or below the "L" mark, add coolant to bring it between the "L" and "F" marks, then inspect the cooling system for leaks.

Coolant quality

1.

Remove the pressure cap.

2.

Check if there are any excessive deposits of rust or scale around the pressure cap sub-assembly and radiator filler hole. Also, the coolant should be free of oil.

If excessively dirty, clean the coolant passage and replace the coolant.

3.

Install the pressure cap.

Replacement and air bleeding


Never remove the radiator cap when the engine is hot. Serious scalding could be caused by hot fluid under high pressure escaping from the radiator.



When pouring engine coolant, be sure to shut the relay box lid and not to let coolant spill on the electrical parts or the paint. If any coolant spills, rinse it off immediately.

[Gamma 1.6 MPI/T-GDI, Nu 2.0 MPI]
1.

Make sure the engine and radiator are cool to the touch.

2.

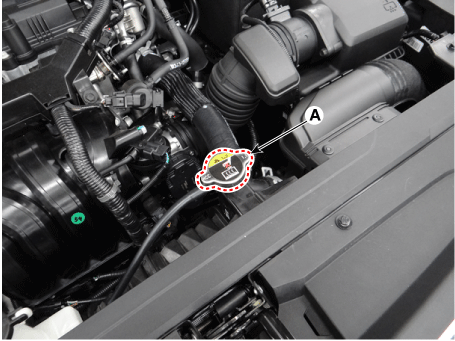

Remove the radiator cap (A).

[Gamma 1.6 MPI, Nu 2.0 MPI]

[Gamma 1.6 T-GDI]

3.

Remove the engine room under cover.

(Refer to Engine Mechanical System - "Engine Room Under Cover")

4.

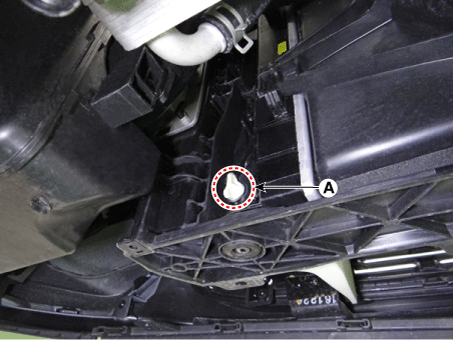

Loosen the drain plug (A), and drain the coolant.

[Gamma 1.6 MPI, Nu 2.0 MPI]

[Gamma 1.6 T-GDI]

5.

Tighten the radiator drain plug securely.

6.

After draining engine coolant in the reservoir tank, clean the tank.

7.

Fill the radiator with water through the radiator cap and tighten the cap.



To most effectively bleed the air, pour the water slowly and press on the upper/lower radiator hoses.

8.

Start the engine and allow to come to normal operating temperature. Wait for the cooling fans to turn on several times.

Accelerate the engine to aid in purging trapped air. Shut engine off.

9.

Wait until the engine is cool.

10.

Repeat steps 1 to 8 until the drained water runs clear.

11.

Coolant and water 45 - 50% slowly through the radiator cap.



Use only genuine antifreeze/coolant.



Do not mix different brands of antifreeze / coolants.

Do not use additional rust inhibitors or antirust products; they may not be compatible with the coolant.

12.

Start the engine and run until coolant circulates.

When the cooling fan operates and coolant circulates, refill coolant through the radiator cap.

13.

Repeat 11 until the cooling fan 3 - 5 times and bleed air sufficiently out of the cooling system.

14.

Install the radiator cap and fill the reservoir tank to the "MAX" (or "F") line with coolant.

15.

Run the vehicle under idle until the cooling fan operates 2 - 3 times.

16.

Stop the engine and wait coolant gets cool.

17.

Repeat 10 to 15 until the coolant level doesn't fall any more, bleed air out of the cooling system.



It takes time to bleed out all the air in the cooling system. Refill coolant when coolant gets cool completely, when recheck the coolant level in the reservoir tank for 2-3 days after replacing coolant.

Coolant capacity

Gamma 1.6 MPI :

MT : Approx. 5.3 L (1.40 U.S.gal., 5.60 U.S.qt., 4.66 lmp.qt.)

AT : Approx. 5.2 L (1.37 U.S.gal., 5.49 U.S.qt., 4.59 lmp.qt.)

NU 2.0 MPI :

MT : Approx. 5.4 L (1.43 U.S.gal., 5.71 U.S.qt., 4.75 lmp.qt.)

AT : Approx. 5.3 L (1.40 U.S.gal., 5.60 U.S.qt., 4.66 lmp.qt.)

Gamma 1.6 T-GDI :

Approx. 6.9 L (1.82 U.S.gal., 7.29 U.S.qt., 6.07 lmp.qt.)

[New U 1.6 TCI]

If KDS is available, replace the coolant as the procedure below.

1.

Make sure the engine and radiator are cool to the touch.

2.

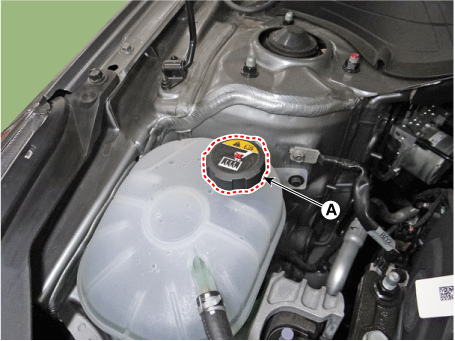

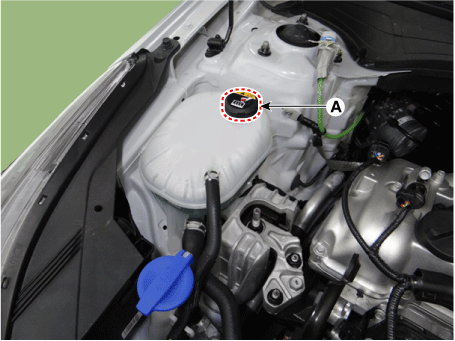

Remove the radiator cap (A).

3.

Remove the engine room under cover.

(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")

4.

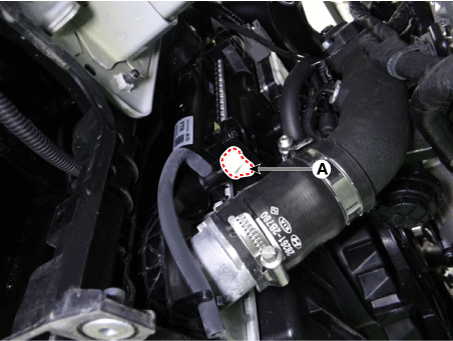

Loosen the drain plug (A), and drain the coolant.

5.

Tighten the radiator drain plug securely.

6.

After draining engine coolant in the reservoir tank, clean the tank.

(Refer to Cooling System - "Reservoir Tank")

7.

Fill fluid mixture with coolant and water 45 - 50% slowly through the radiator cap.



Make sure that the engine is turned off and power is shut down.

Coolant capacity :

Approx. 6.9 L (1.82 US gal., 7.30 US qt., 6.07 lmp qt.)



Use only genuine antifreeze/coolant.

For best corrosion protection, the coolant concentration must be maintained year-round at 45% minimum.

Coolant concentrations less than 45% may not provide sufficient protection against corrosion or freezing.

Coolant concentrations greater then 60% will impair cooling efficiency and are not recommended.

Do not mix different brands of antifreeze/coolants.

Do not use additional rust inhibitors or antirust products; they may not be compatible with the coolant.

8.

Start the engine.



Engine in the idling condition.

9.

Connect the KDS.

10.

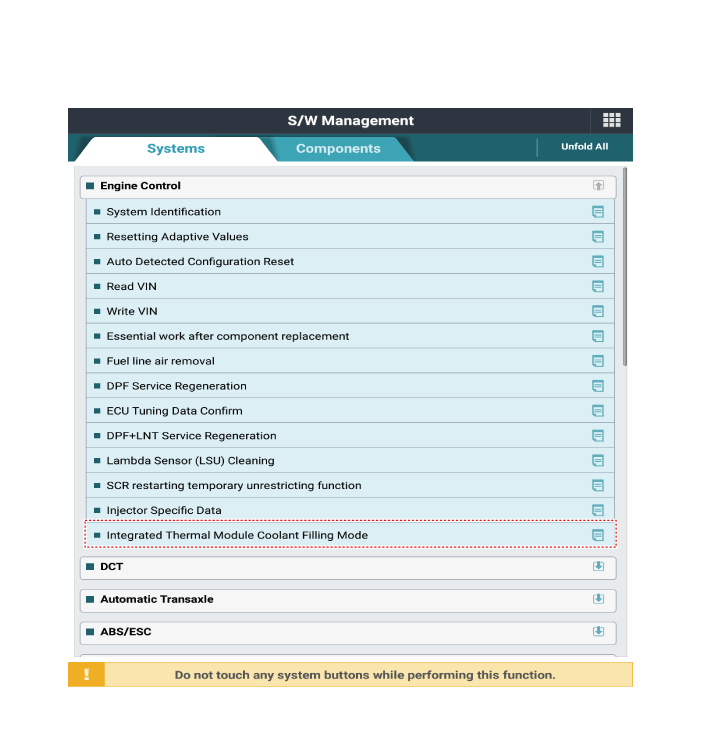

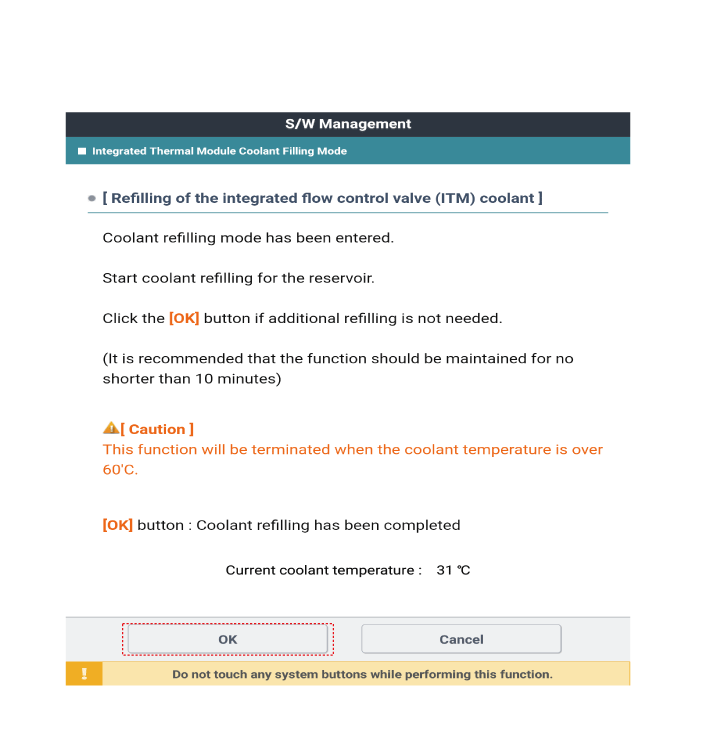

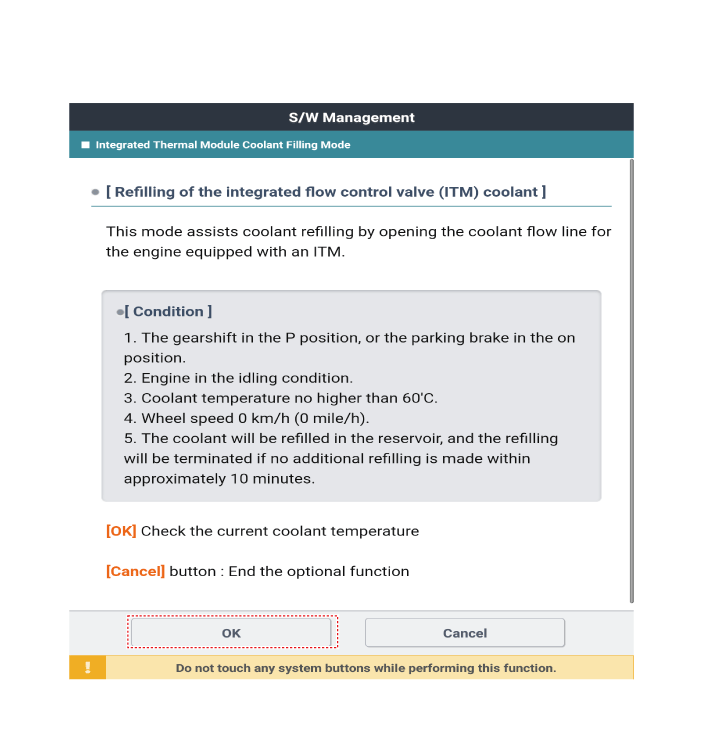

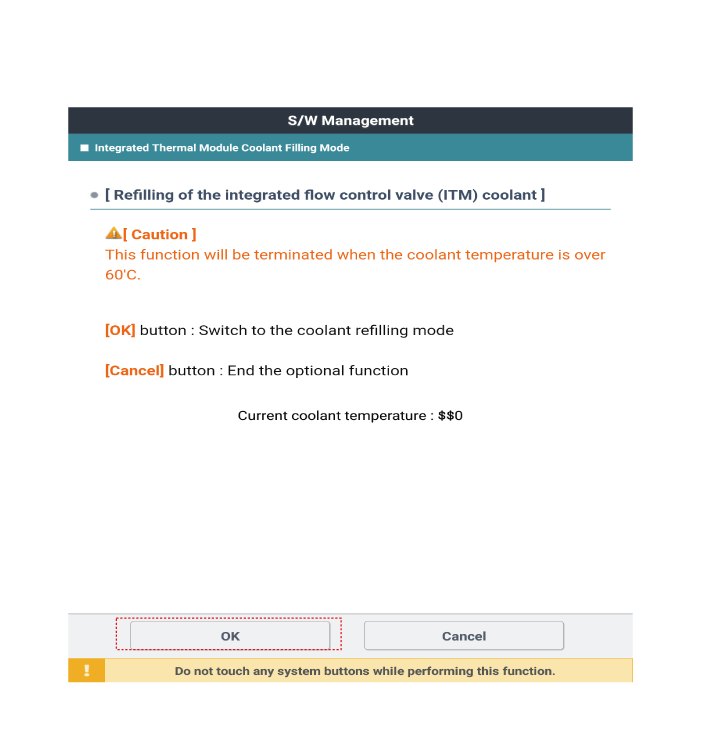

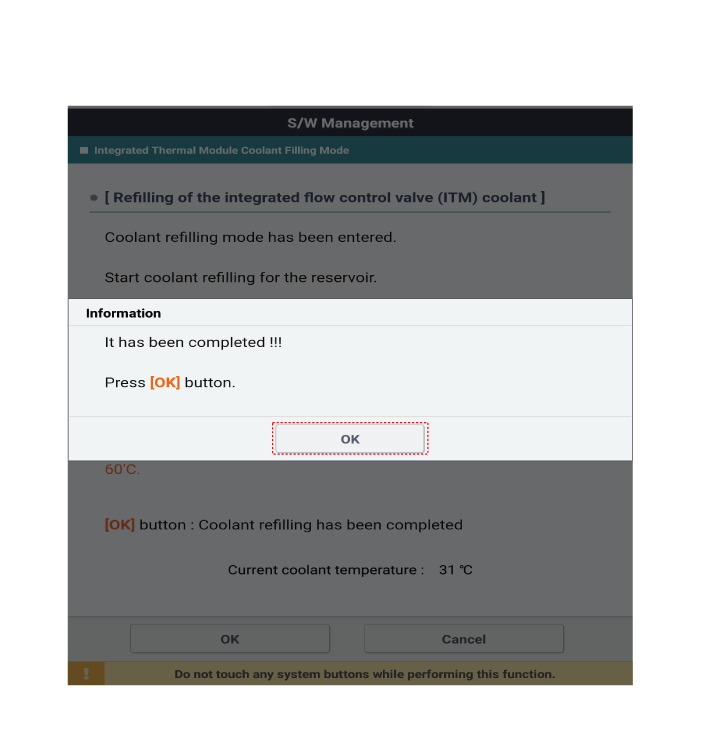

Perform the "Integrated Thermal Module Coolant Filling Mode".

11.

Keep the engine idle until the cooling fan turns on and off 3 - 5 times.

12.

After disconnecting the KDS, start the engine after the engine is turned off.

13.

Install the radiator cap (A).

14.

Check the coolant level.

15.

Refill the coolant.

16.

Install the engine room under cover.

(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")

If KDS is unavailable, replace the coolant as the procedure below.

1.

Make sure the engine and radiator are cool to the touch.

2.

Remove the radiator cap (A).

3.

Remove the engine room under cover.

(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")

4.

Loosen the drain plug (A), and drain the coolant.

5.

Tighten the radiator drain plug securely.

6.

After draining engine coolant in the reservoir tank, clean the tank.

(Refer to Cooling System - "Reservoir Tank")

7.

Fill fluid mixture with coolant and water 45 - 50% slowly through the pressure cap.



Make sure that the engine is turned off and power is shut down.

Coolant capacity :

Approx. 6.9 L (1.82 US gal., 7.30 US qt., 6.07 lmp qt.)



Use only genuine antifreeze/coolant.

For best corrosion protection, the coolant concentration must be maintained year-round at 45% minimum.

Coolant concentrations less than 45% may not provide sufficient protection against corrosion or freezing.

Coolant concentrations greater then 60% will impair cooling efficiency and are not recommended.

Do not mix different brands of antifreeze/coolants.

Do not use additional rust inhibitors or antirust products; they may not be compatible with the coolant.

8.

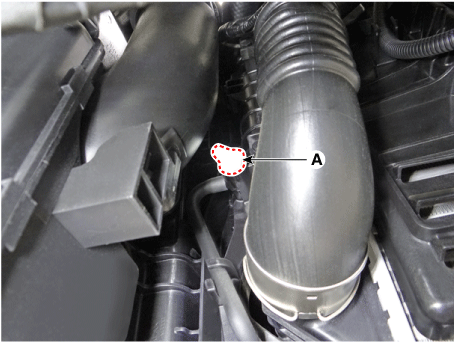

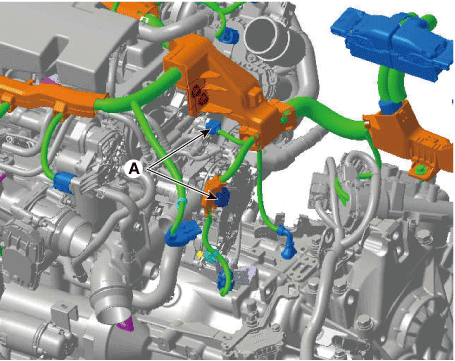

Disconnect the Integrated thermal management module (ITM) connector (A).



Make sure that the engine is turned off and power is shut down when disconnecting the integrated thermal management module (ITM) connector.

Make sure that static electricy and other voltages do not act on the integrated thermal management module (ITM).

Keep objects with magnetic properties , including magnets , away from the integrated thermal management module (ITM).

9.

Start the engine.



Engine in the idling condition.

10.

Keep the engine idle until the cooling fan turns on and off 3 - 5 times.

11.

After engine off and then disconnect the integrated thermal management module (ITM) connector (A).



When connecting the integrated thermal management module (ITM) connector, remove oil and water from the connector completely and prevent foreign substance from entering the connector.

If replacement of the integrated thermal management module (ITM) is necessary, be sure to replace with a connector that conforms to the specifications.

12.

Start the engine.

13.

Check the operating sound of the integrated thermal management module (ITM) to see if it works properly.



Intergrated thermal management module (ITM) operating sound may be heard before or after the engine is started.

14.

After running the vehicle and then check the coolant.

15.

Refill the coolant.

16.

Install the engine room under cover.

(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
